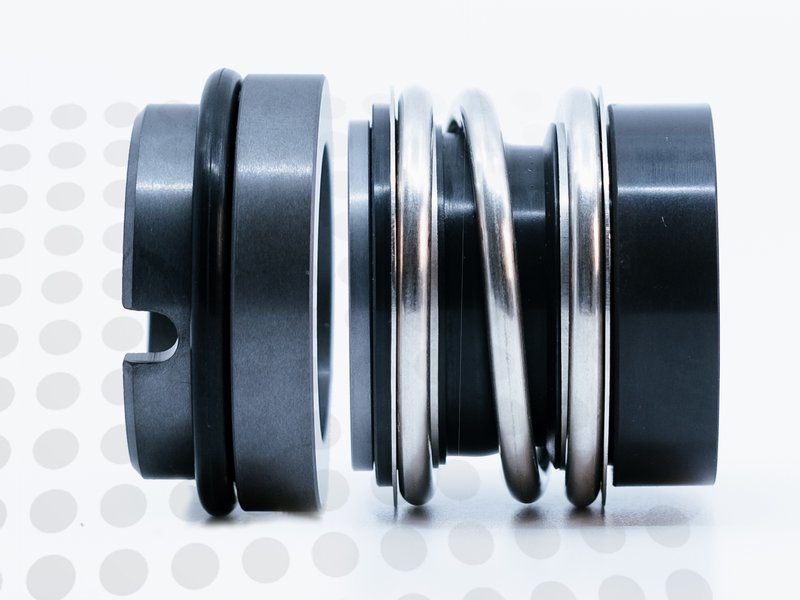

The Qseals 2C-QRB07ST09-0300-SSN is part of the QRB07ST09 group and is designed for 30 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B052SL-DDX1-0300, AES N-B092SLU-DDX1-0300, Flowserve M412LZ705, and Vulcan 0300.142DINL.N.S..
| Brand | Qseals |
|---|---|
| Group | QRB07ST09 |
| SKU | 2C-QRB07ST09-0300-SSN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 30 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |

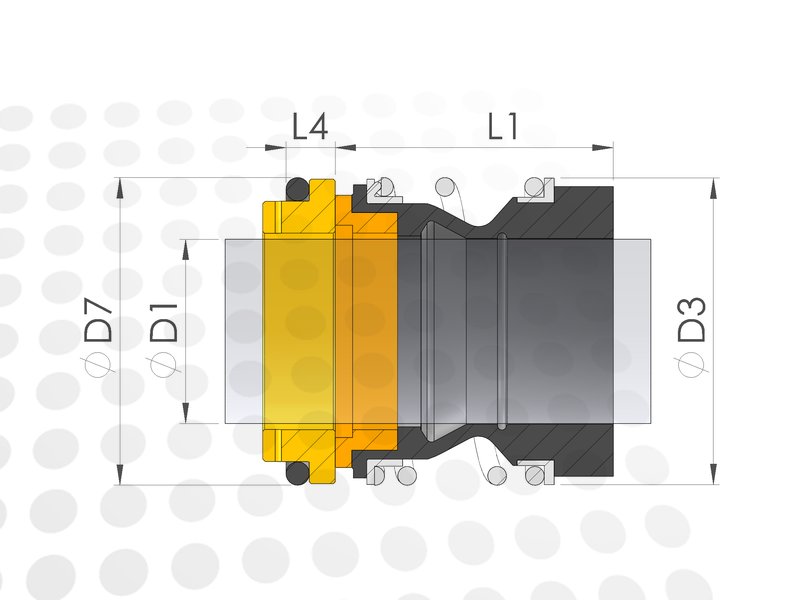

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB07ST09-0300-SSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B052SL-DDX1-0300 |
| AES | N-B092SLU-DDX1-0300 |
| Flowserve | M412LZ705 |
| Vulcan | 0300.142DINL.N.S. |
Applications
The Qseals 2C-QRB07ST09-0300-SSN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| IMO | D4 038 K1 xTxx |
| IMO | D4 038 K2 xTBE |
| IMO | D4 038 K2 xTxx |
| IMO | D4 038 L1 xTxx |
| IMO | D4 038 L2 xTBE |
| Brand | SKU |
|---|---|
| IMO | D4 038 L2 xTxx |
| IMO | D4 038 N1 xTxx |
| IMO | D4 038 N2 xTBE |
| IMO | D4 038 N2 xTxx |
