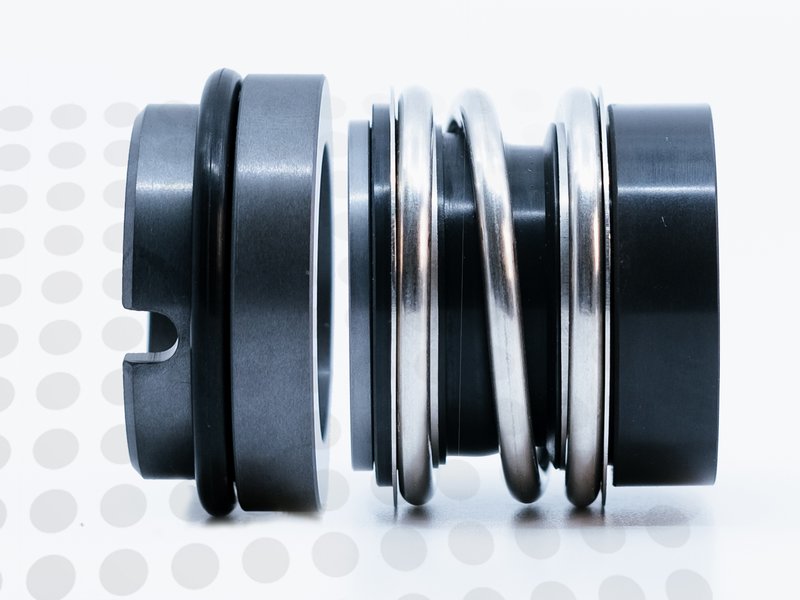

The Qseals 2C-QRB07ST09-0330-SSN is part of the QRB07ST09 group and is designed for 33 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B052SL-DDX1-0330, AES N-B092SLU-DDX1-0330, and Vulcan 0330.142DINL.N.S..
| Brand | Qseals |
|---|---|
| Group | QRB07ST09 |
| SKU | 2C-QRB07ST09-0330-SSN |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

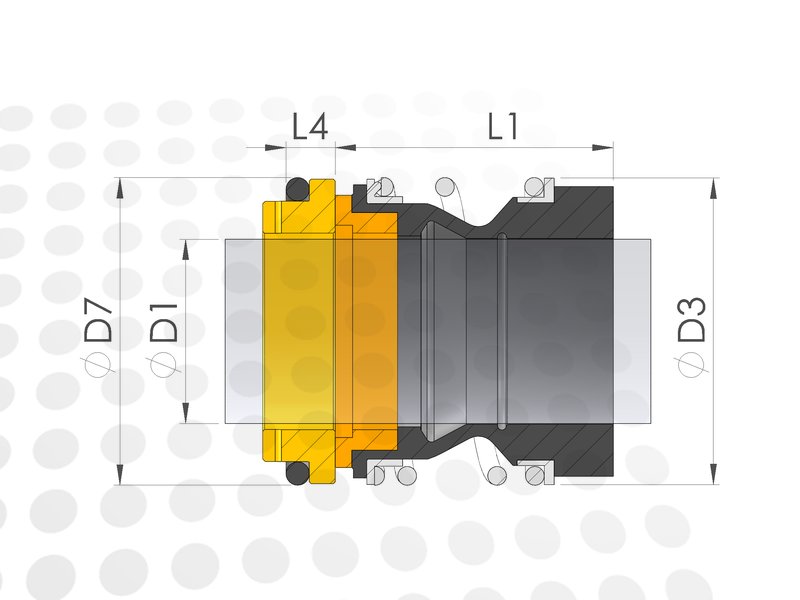

| Shaft size (D1) | 33 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB07ST09 product group.
Alternatives
The Qseals 2C-QRB07ST09-0330-SSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B052SL-DDX1-0330 |
| AES | N-B092SLU-DDX1-0330 |
| Vulcan | 0330.142DINL.N.S. |
Applications
The Qseals 2C-QRB07ST09-0330-SSN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
