The Qseals 2C-QRB09STS-0480-CSV is part of the QRB09STS group and is designed for 48 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B07-ADZ1-0480 and Vulcan 0480.1724.V.D..
| Brand | Qseals |
|---|---|
| Group | QRB09STS |
| SKU | 2C-QRB09STS-0480-CSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

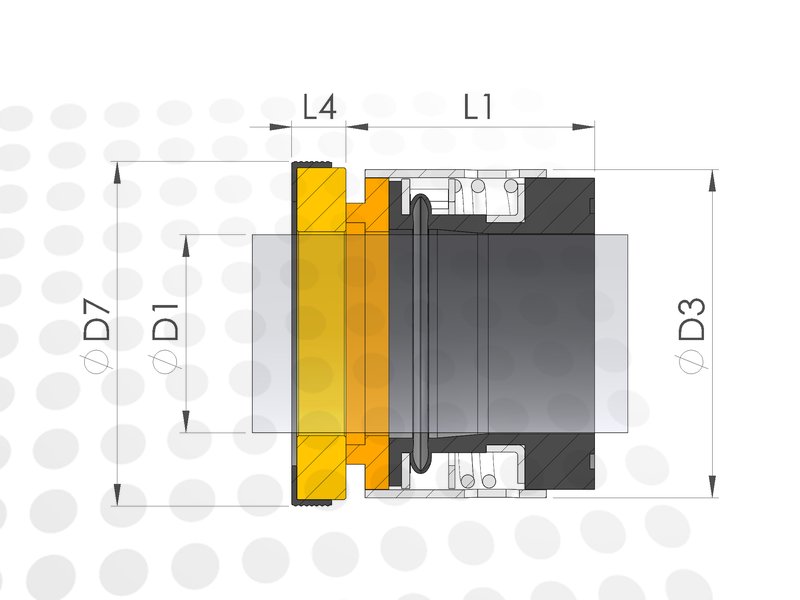

| Shaft size (D1) | 48 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Temperature Limit | 205 °C |
Other size or material combination?
Search within the Qseals QRB09STS product group.
Alternatives
The Qseals 2C-QRB09STS-0480-CSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B07-ADZ1-0480 |
| Vulcan | 0480.1724.V.D. |
