The Qseals 2C-QRB24STS-0750-CSV is part of the QRB24STS group and is designed for 75 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the AES N-B09XSU-ADZ1-0750.
| Brand | Qseals |
|---|---|
| Group | QRB24STS |
| SKU | 2C-QRB24STS-0750-CSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

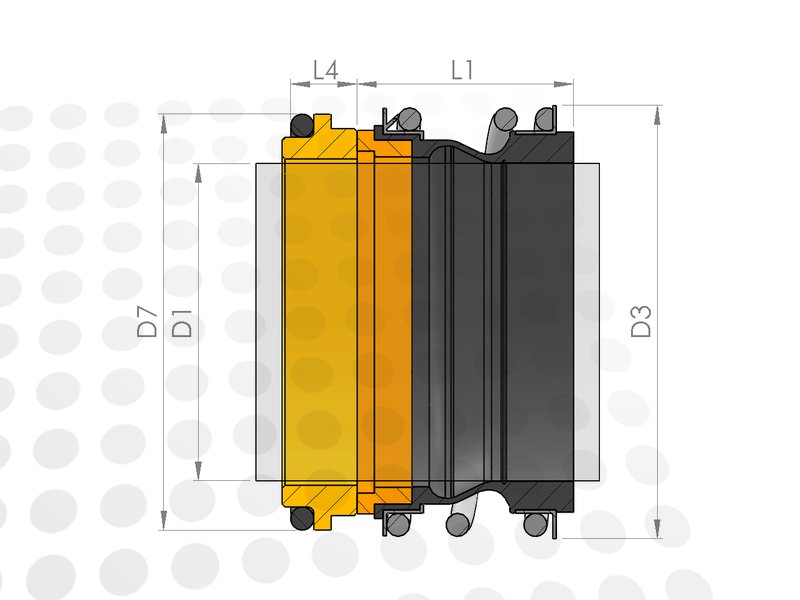

| Shaft size (D1) | 75 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Temperature Limit | 205 °C |
Other size or material combination?
Search within the Qseals QRB24STS product group.
Alternatives
The Qseals 2C-QRB24STS-0750-CSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B09XSU-ADZ1-0750 |
Applications
The Qseals 2C-QRB24STS-0750-CSV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| KSB | Amarex KRT K 151-401/1104XG |
| KSB | Amarex KRT K 350-420 |
| KSB | Amarex KRTK 250-370 |
