The Qseals 2C-QSARL-0250-SSV-SCV is part of the QSARL group and is designed for 25 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-S0SU-DDZDAZS-0250, Grundfos 96066753, Sarlin 96066753, and Sarlin YJ-34499.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

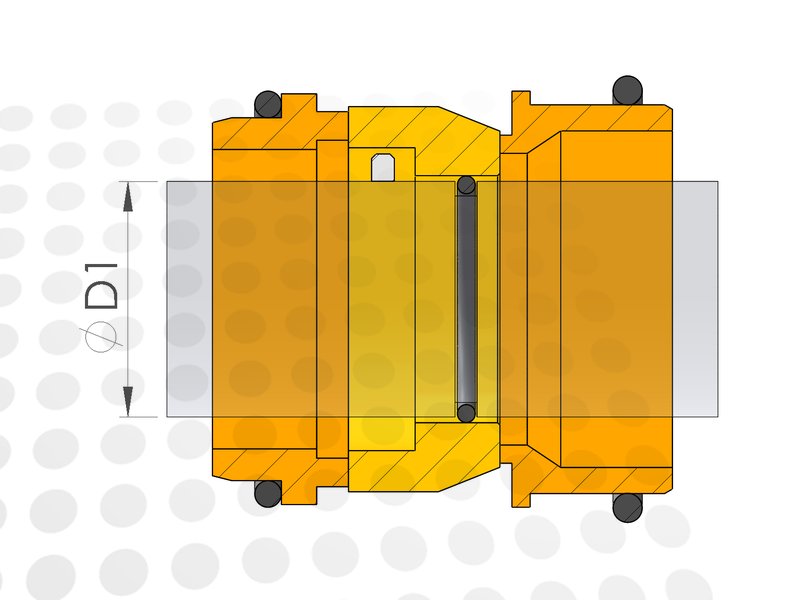

| Shaft size (D1) | 25 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Silicon Carbide (SIC) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | Viton (FKM) |
| Temperature limit | 205 °C |
Other size or material combination?
Search within the Qseals QSARL product group.
Applications
The Qseals 2C-QSARL-0250-SSV-SCV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
