The Qseals 2C-QSARLS25-0250-SSV-SCV is part of the QSARLS group and is designed for 25 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-S0SS-DDZDAZS-0250, AES N-S0SSU-DDZDAZS-0250, Grundfos 96066756, and 4 other alternatives.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

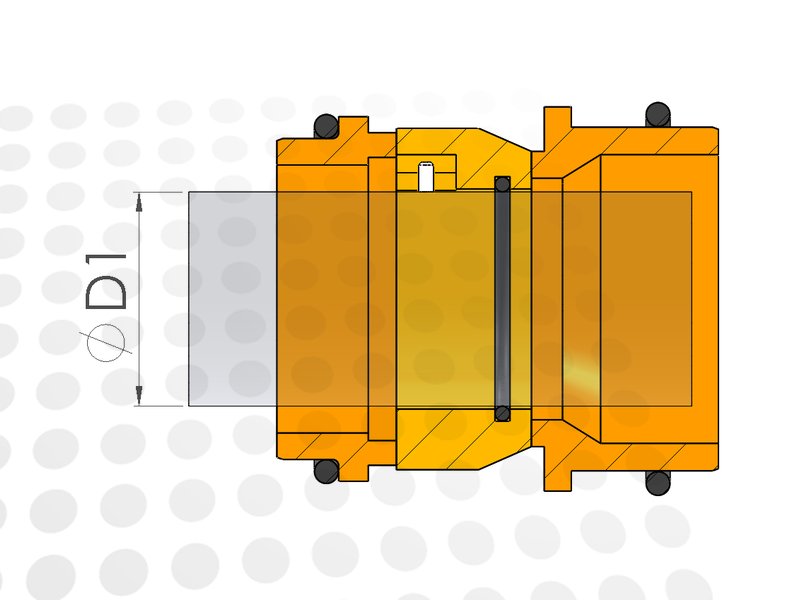

| Shaft size (D1) | 25 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Silicon Carbide (SIC) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | Viton (FKM) |
| Temperature limit | 205 °C |
Other size or material combination?
Search within the Qseals QSARLS product group.
Applications
The Qseals 2C-QSARLS25-0250-SSV-SCV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 2C-QSARLS25-0250-SSV-SCV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-S0SS-DDZDAZS-0250 |
| AES | N-S0SSU-DDZDAZS-0250 |
| Grundfos | 96066756 |
| Grundfos | 96567334 |
| Sarlin | 96066756 |
| Sarlin | 96567334 |
| Sarlin | YJ-34538 |
