The Qseals 2C-QWS01ST07-0750-TSV is part of the QWS01ST07 group and is designed for 75 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the AES N-W01S06-GDZ1-0750.
Technical specifications

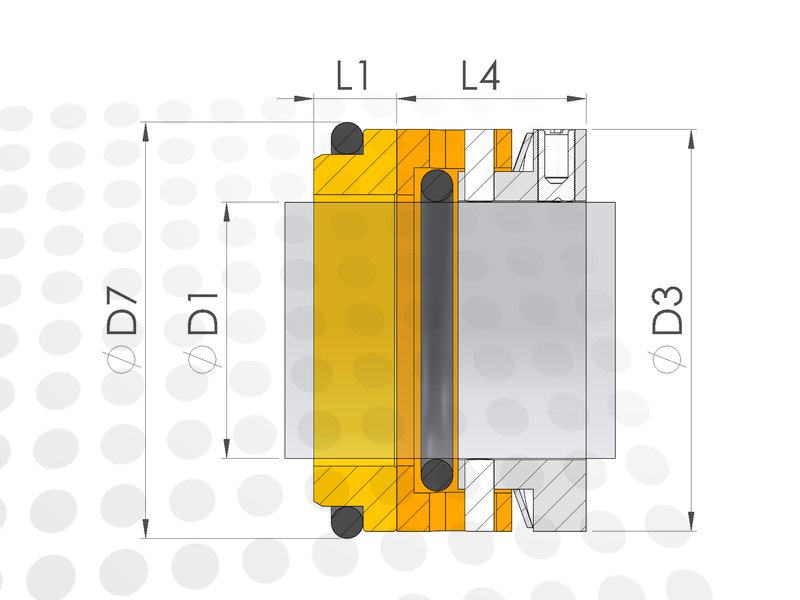

| Category | WAVE SPRING |
|---|---|
| Shaft size (D1) | 75 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 205 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QWS01ST07 product group.
Alternatives
The Qseals 2C-QWS01ST07-0750-TSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-W01S06-GDZ1-0750 |
