The Qseals 2C-QWS07BST09-0300-ZZN is part of the QWS07BST09 group and is designed for 30 mm shaft applications. It features a sintered silicon carbide rotary face paired with a sintered silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-W07DMBU-JJX1-0350, Burgmann H75N/30-00 Q1Q1PGG, Burgmann H7N/30-00 Q1Q1PGG, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QWS07BST09 |
| SKU | 2C-QWS07BST09-0300-ZZN |
No commitment. Receive a price and technical data sheet within 24 hours.

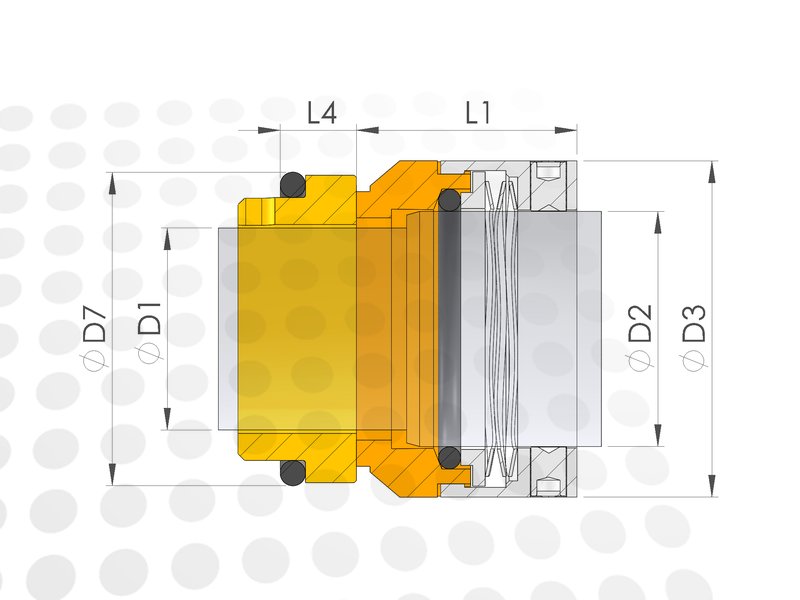

Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size | 30 mm |
| Rotary face | Sintered Silicon Carbide |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | NBR |
| Upper Shaftsize | |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 45 bar |
Alternatives
The Qseals 2C-QWS07BST09-0300-ZZN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-W07DMBU-JJX1-0350 |
| Burgmann | H75N/30-00 Q1Q1PGG |
| Burgmann | H7N/30-00 Q1Q1PGG |
| Flowserve | EUROPAC 610-30 Q1Q1PGG |
| Fluiten | BM3A 030 U31U31GEE |
| Fluiten | BS3A 030 U31U31GEE |
| Vulcan | W-0300.1678.N.R. |
