The Qseals 2C-QWS07BST09-0550-ZZE is part of the QWS07BST09 group and is designed for 55 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-W07DMBU-JJY1-0600, Burgmann H75N/55-00 Q1Q1EGG, Burgmann H7N/55-00 Q1Q1EGG, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QWS07BST09 |
| SKU | 2C-QWS07BST09-0550-ZZE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size (D1) | 55 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |

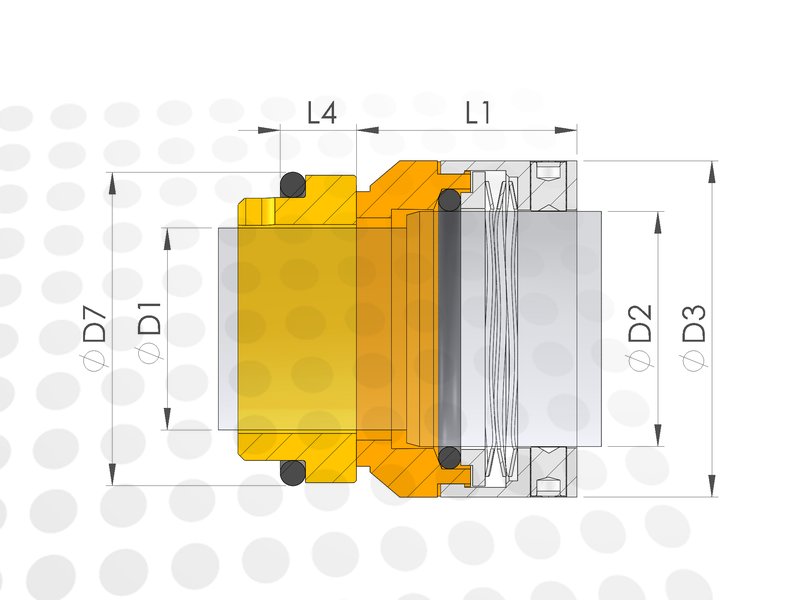

| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 45 bar |
Other size or material combination?
Search within the Qseals QWS07BST09 product group.
Alternatives
The Qseals 2C-QWS07BST09-0550-ZZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-W07DMBU-JJY1-0600 |
| Burgmann | H75N/55-00 Q1Q1EGG |
| Burgmann | H7N/55-00 Q1Q1EGG |
| Flowserve | EUROPAC 610-55 Q1Q1EGG |
| Fluiten | BM3A 055 U31U31DEE |
| Fluiten | BS3A 055 U31U31DEE |
| Vulcan | W-0600.1678.E.R |
