The Qseals 2C-QWS07BST09-0600-CZE is part of the QWS07BST09 group and is designed for 60 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for AES, 4 Burgmann models, 2 Flowserve models, 2 Fluiten models, and Vulcan.
| Brand | Qseals |
|---|---|
| Group | QWS07BST09 |
| SKU | 2C-QWS07BST09-0600-CZE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|

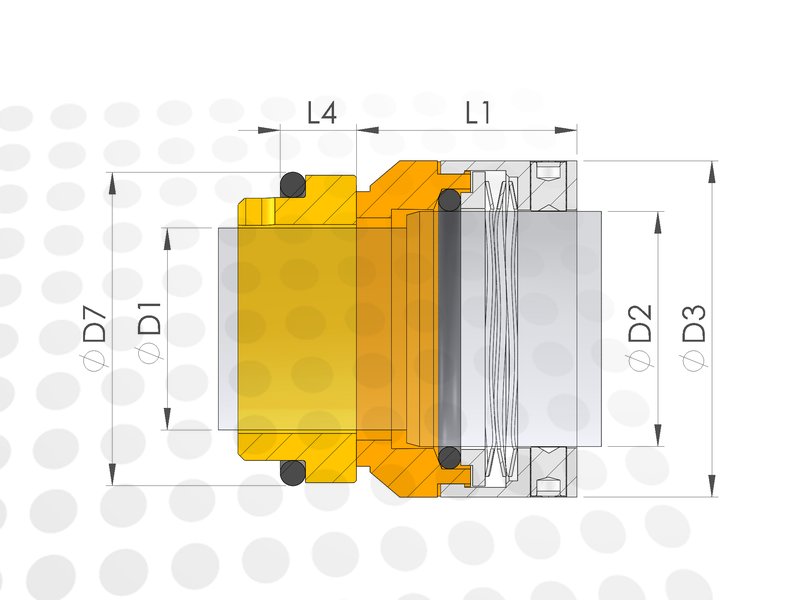

| Shaft size (D1) | 60 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 45 bar |
Other size or material combination?
Search within the Qseals QWS07BST09 product group.
Alternatives
The Qseals 2C-QWS07BST09-0600-CZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
Applications
The Qseals 2C-QWS07BST09-0600-CZE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
