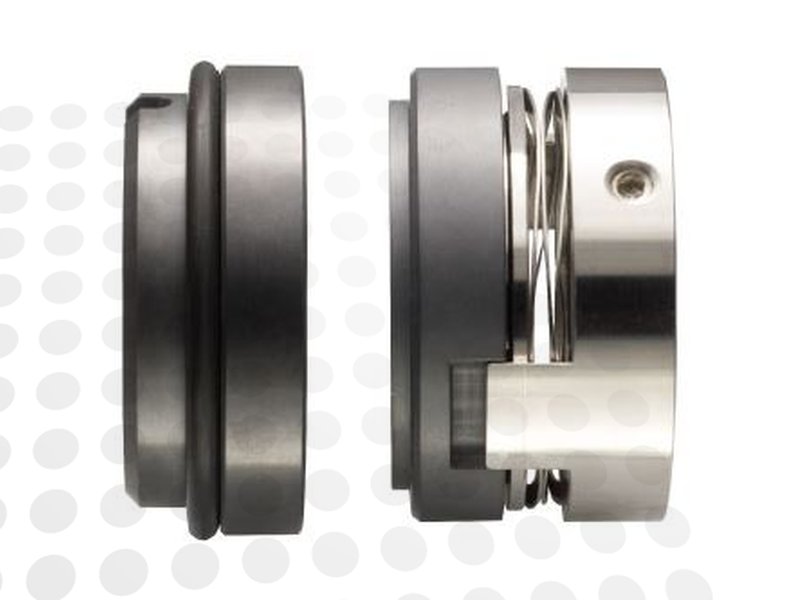

The Qseals 2C-QWS07ST09-0650-CZV is part of the QWS07ST09 group and is designed for 65 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for AES, 6 Burgmann models, 3 Flowserve models, 3 Fluiten models, Grundfos, 2 KSB models, and Vulcan.
| Brand | Qseals |
|---|---|
| Group | QWS07ST09 |
| SKU | 2C-QWS07ST09-0650-CZV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size (D1) | 65 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | Viton (FKM VIT) |

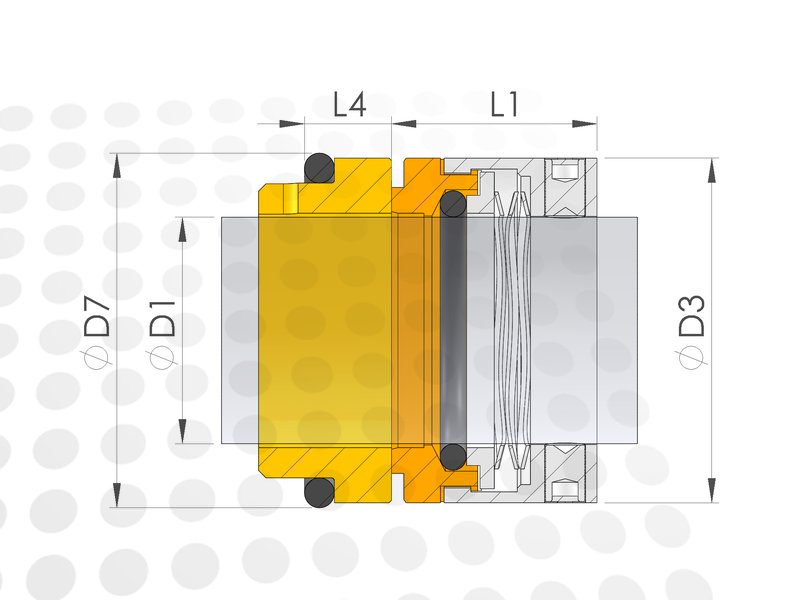

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Other size or material combination?
Search within the Qseals QWS07ST09 product group.
Alternatives
The Qseals 2C-QWS07ST09-0650-CZV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
Applications
The Qseals 2C-QWS07ST09-0650-CZV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
