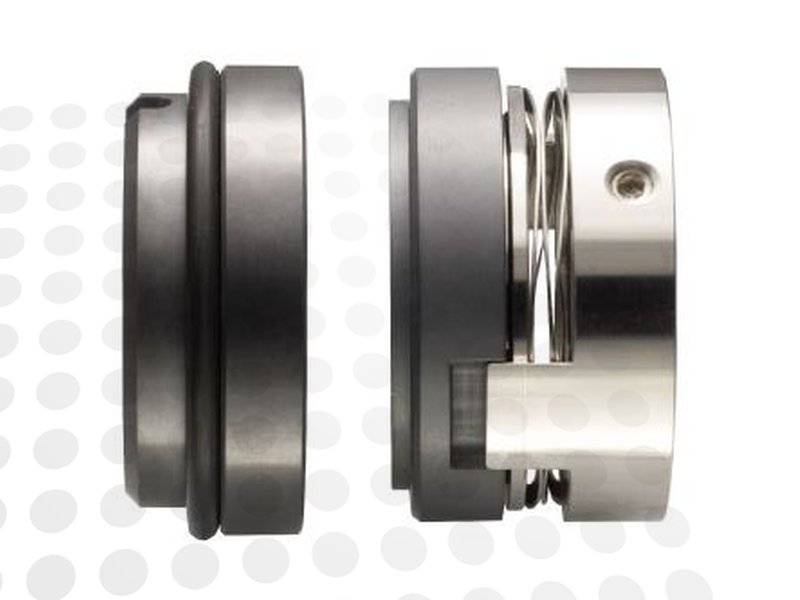

The Qseals 2C-QWS07ST09-0650-CZW is part of the QWS07ST09 group and is designed for 65 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses PTFE (PTFE) elastomers. The maximum recommended operating temperature is 250°C.
| Brand | Qseals |
|---|---|
| Group | QWS07ST09 |
| SKU | 2C-QWS07ST09-0650-CZW |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|

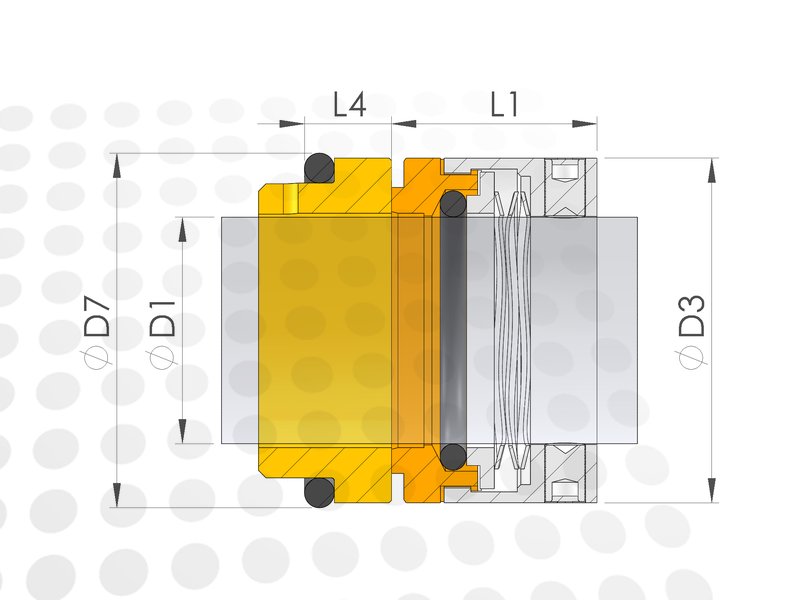

| Shaft size (D1) | 65 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | PTFE (PTFE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 250 °C |
| Pressure Limit | 25 bar |
