The Qseals 2C-QWS15STS-0476-CZE is part of the QWS15STS group and is designed for 47.6 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-W015U-AJY1-0476 and Jabsco 96080-0570.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

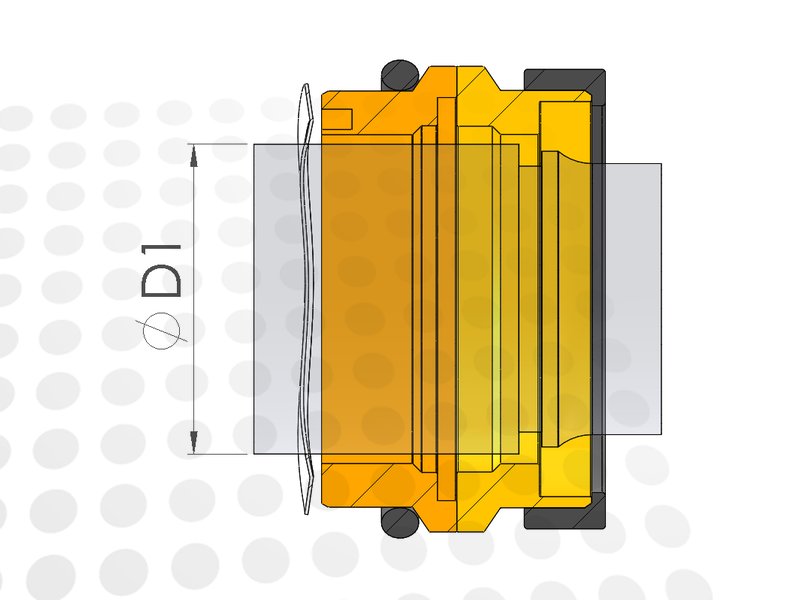

| Shaft size (D1) | 47.6 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Temperature limit | 140 °C |
Other size or material combination?
Search within the Qseals QWS15STS product group.
Alternatives
The Qseals 2C-QWS15STS-0476-CZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-W015U-AJY1-0476 |
| Jabsco | 96080-0570 |
Applications
The Qseals 2C-QWS15STS-0476-CZE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Tuchenhagen | VPSH 62 |
| Tuchenhagen | VPSU 62 |
| Jabsco | Hy~Line LH62 |
| Jabsco | Hy~Line LH64 |
| Jabsco | Ultima LU62 |
| Jabsco | Ultima LU64 |
