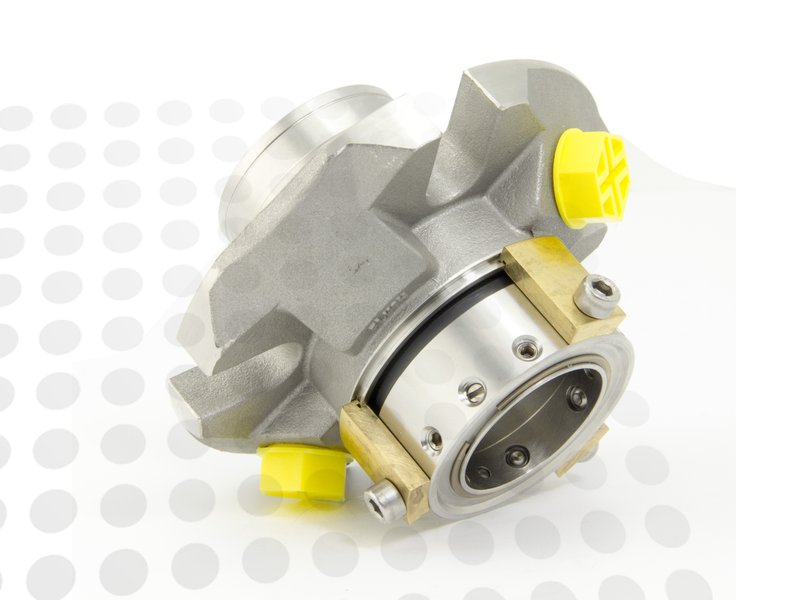

The Qseals 2P-QDC-0330K-TTV-CTV is part of the QDC group and is designed for 33 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C.
| Brand | Qseals |
|---|---|
| Group | QDC |
| SKU | 2P-QDC-0330K-TTV-CTV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CARTRIDGE |
|---|---|
| Shaft size (D1) | 33 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Tungsten Carbide (TC) |
| Outer elastomer | Viton (FKM) |
| Temperature limit | 205 °C |
| Pressure limit | 30 bar |
Other size or material combination?
Search within the Qseals QDC product group.
