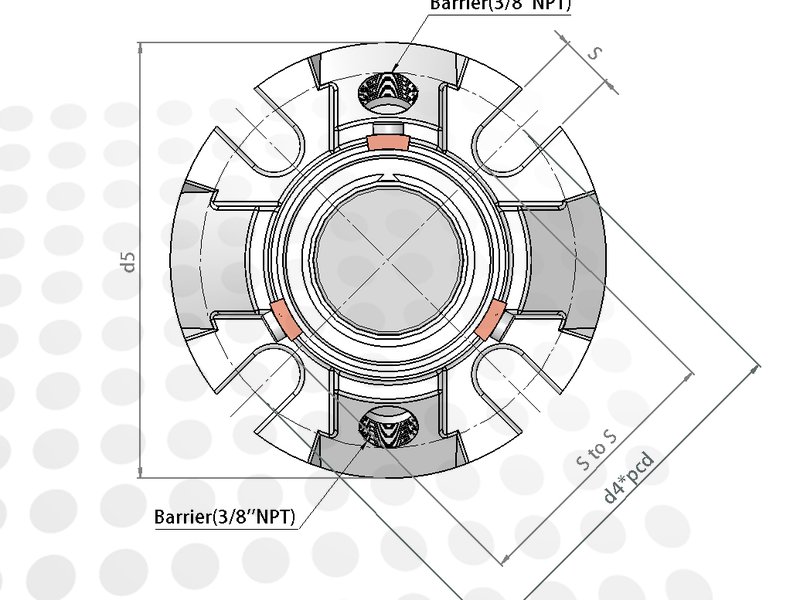

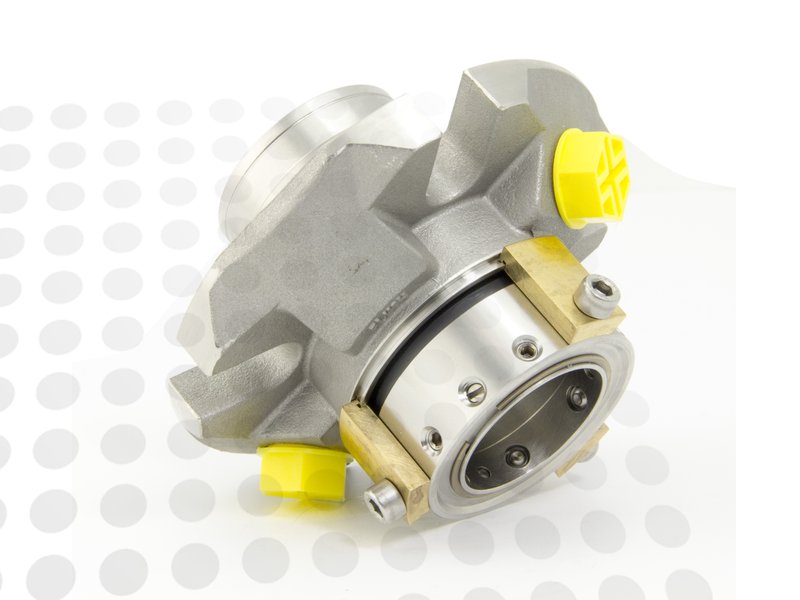

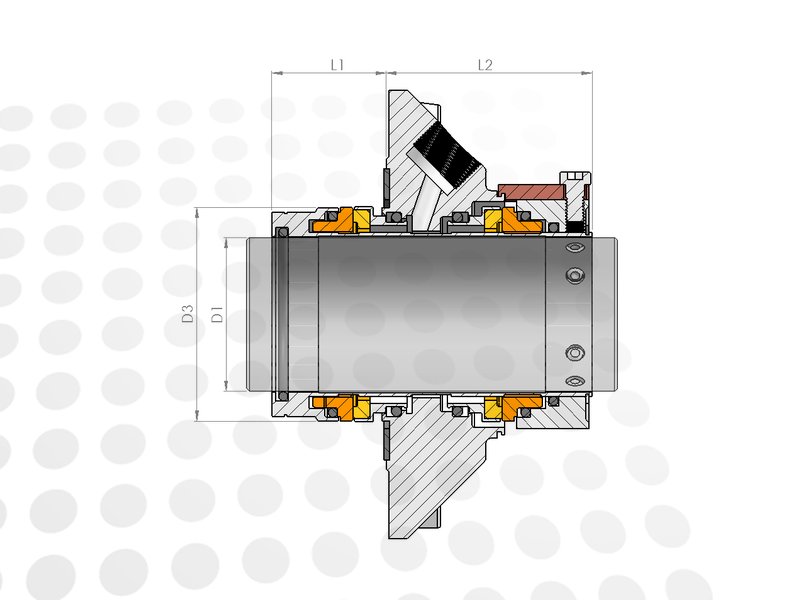

The Qseals 2P-QDC-0500-SSL-CSL is part of the QDC group and is designed for 50 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Aflas (AFLAS) elastomers. The maximum recommended operating temperature is 230°C.
| Brand | Qseals |
|---|---|
| Group | QDC |
| SKU | 2P-QDC-0500-SSL-CSL |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CARTRIDGE |
|---|---|
| Shaft size (D1) | 50 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Aflas (AFLAS) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Silicon Carbide (SIC) |
| Outer elastomer | L |
| Temperature limit | 230 °C |
| Pressure limit | 30 bar |
Other size or material combination?
Search within the Qseals QDC product group.
