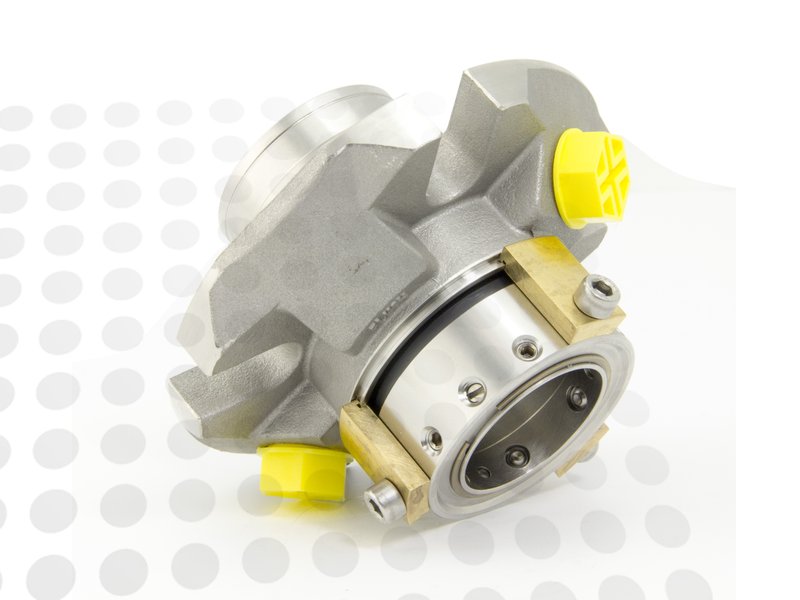

The Qseals 2P-QDC-0650-SCL-CSL is part of the QDC group and is designed for 65 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Carbon (CAR) stationary face. This product uses Aflas (AFLAS) elastomers. The maximum recommended operating temperature is 210°C.
| Brand | Qseals |
|---|---|
| Group | QDC |
| SKU | 2P-QDC-0650-SCL-CSL |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CARTRIDGE |
|---|---|
| Shaft size (D1) | 65 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Carbon (CAR) |
| Elastomers | Aflas (AFLAS) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Silicon Carbide (SIC) |
| Outer elastomer | AFLAS |
| Temperature limit | 210 °C |
| Pressure limit | 30 bar |
