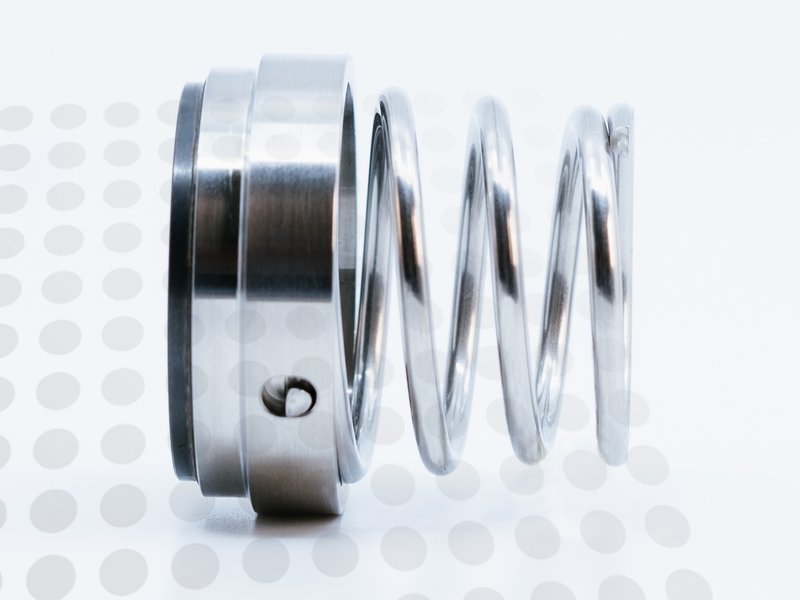

The Qseals 2R-QCS01-0140-C-E-R is part of the QCS01 group and is designed for 14 mm shaft applications. It features Carbon (CAR) rotary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C.
| Brand | Qseals |
|---|---|
| Group | QCS01 |
| SKU | 2R-QCS01-0140-C-E-R |
In stock
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CONICAL SPRING |
|---|---|

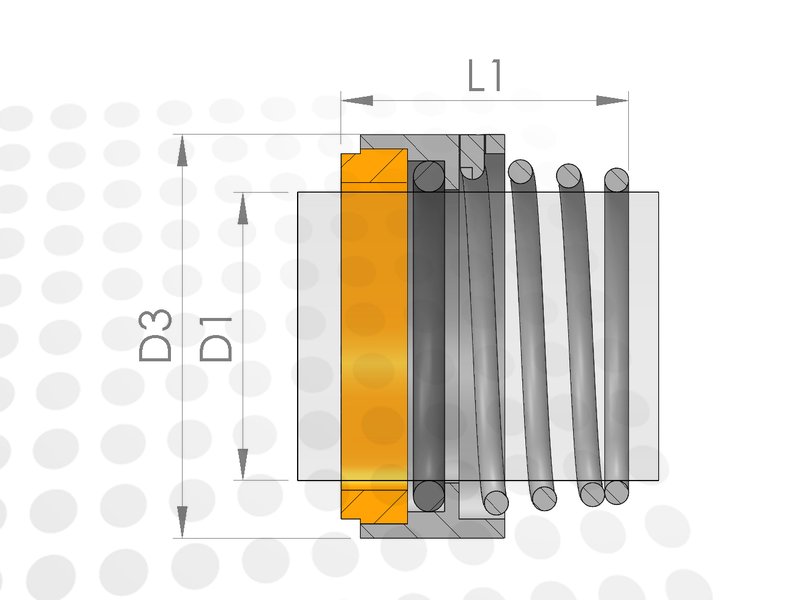

| Shaft size (D1) | 14 mm |
| Rotary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
