The Qseals 2R-QCS07-0650-U-N-R is part of the QCS07 group and is designed for 65 mm shaft applications. It features Ceramic (CER) rotary faces. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the AES N-T03U-B-XR-0650.
| Brand | Qseals |
|---|---|
| Group | QCS07 |
| SKU | 2R-QCS07-0650-U-N-R |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

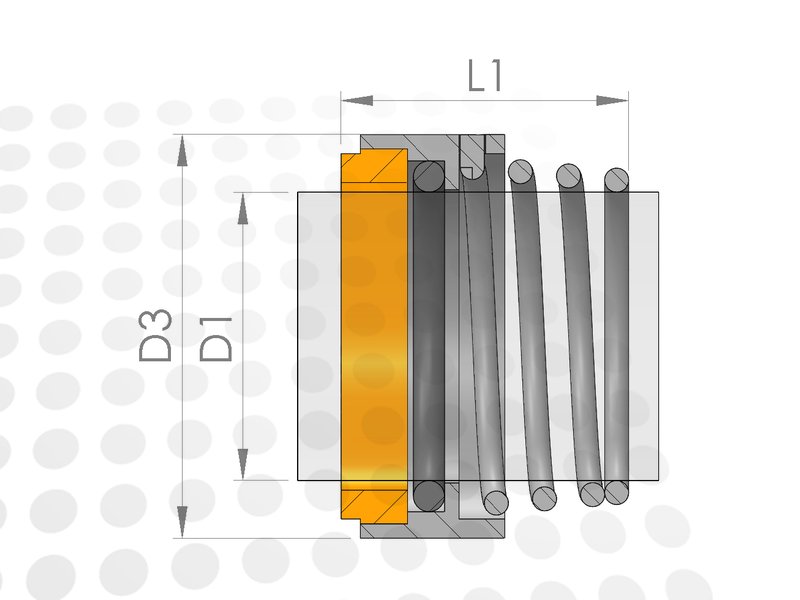

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 65 mm |
| Rotary face | Ceramic (CER) |
| Elastomers | NBR (NITRILE) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS07 product group.
Alternatives
The Qseals 2R-QCS07-0650-U-N-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T03U-B-XR-0650 |
