The Qseals 2R-QPS02-0900-S-E is part of the QPS02 group and is designed for 90 mm shaft applications. It features Silicon Carbide (SIC) rotary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C.
| Brand | Qseals |
|---|---|
| Group | QPS02 |
| SKU | 2R-QPS02-0900-S-E |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PARALLEL SPRING |
|---|---|
| Shaft size (D1) | 90 mm |
| Rotary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |

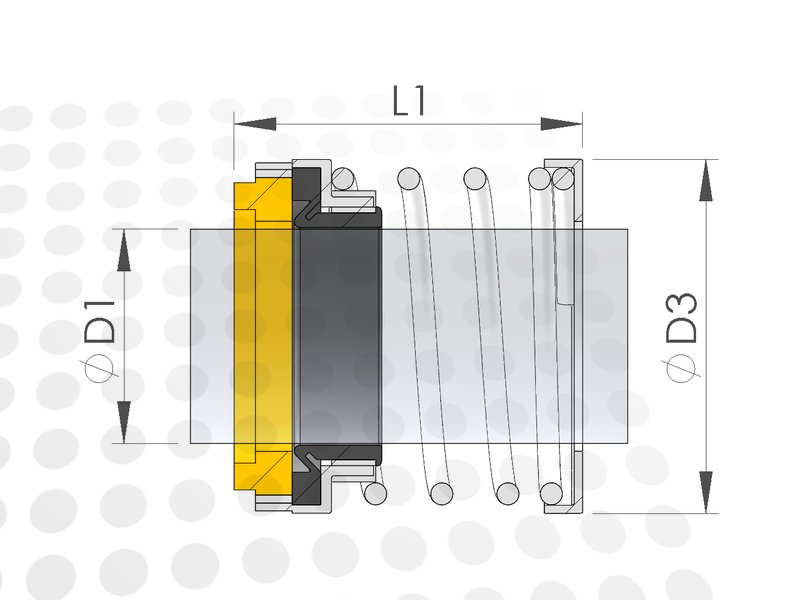

| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QPS02 product group.
