The Qseals 2R-QPS04-0412-C-N is part of the QPS04 group and is designed for 41.2 mm shaft applications. It features carbon rotary faces. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-P04-A-XP-0412 and Vulcan 0412.11.N.C.SEAL. It can be installed in equipment such as the Stalker 100HL, Stalker 100HL / HD, Stalker 100SHL, and 6 other applications.
| Brand | Qseals |
|---|---|
| Group | QPS04 |
| SKU | 2R-QPS04-0412-C-N |
No commitment. Receive a price and technical data sheet within 24 hours.

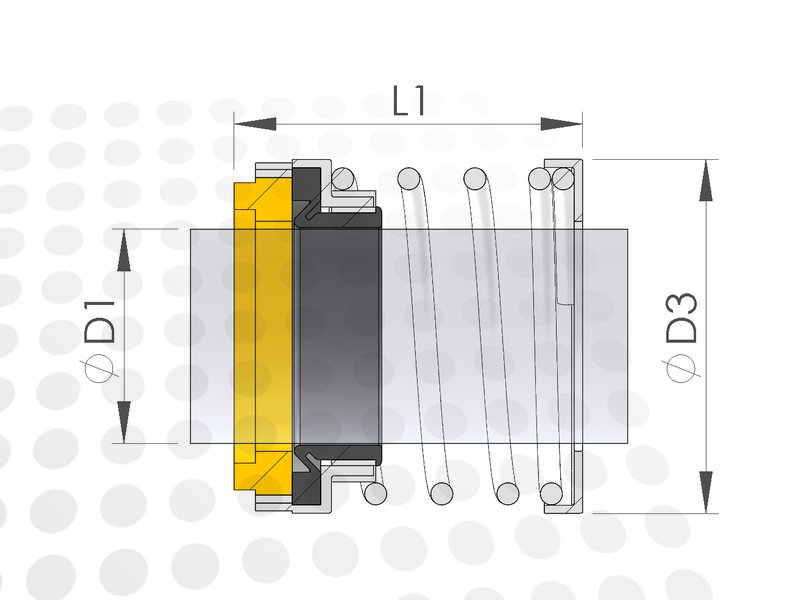

Technical specifications
| Category | PARALLEL SPRING |
|---|---|
| Shaft size | 41.2 mm |
| Rotary face | Carbon |
| Elastomers | NBR |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 25 bar |
Alternatives
The Qseals 2R-QPS04-0412-C-N is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-P04-A-XP-0412 |
| Vulcan | 0412.11.N.C.SEAL |
Applications
The Qseals 2R-QPS04-0412-C-N can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
