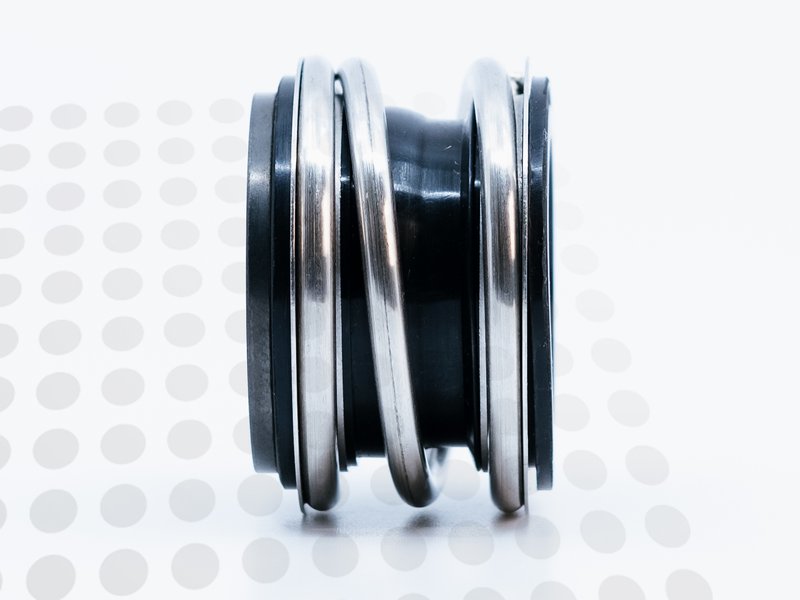

The Qseals 2R-QRB01-1200-C-V is part of the QRB01 group and is designed for 120 mm shaft applications. It features Silicon Carbide (SIC) rotary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the Anga 120 A1 - QVGG and Anga 120 A41 - QVGG.
| Brand | Qseals |
|---|---|
| Group | QRB01 |
| SKU | 2R-QRB01-1200-C-V |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

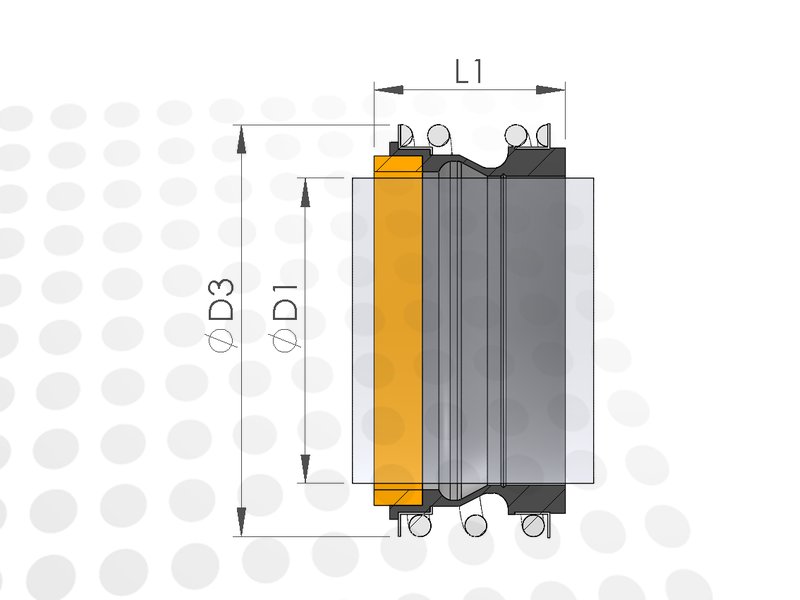

| Shaft size (D1) | 120 mm |
| Rotary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB01 product group.
Alternatives
The Qseals 2R-QRB01-1200-C-V is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Anga | 120 A1 - QVGG |
| Anga | 120 A41 - QVGG |
