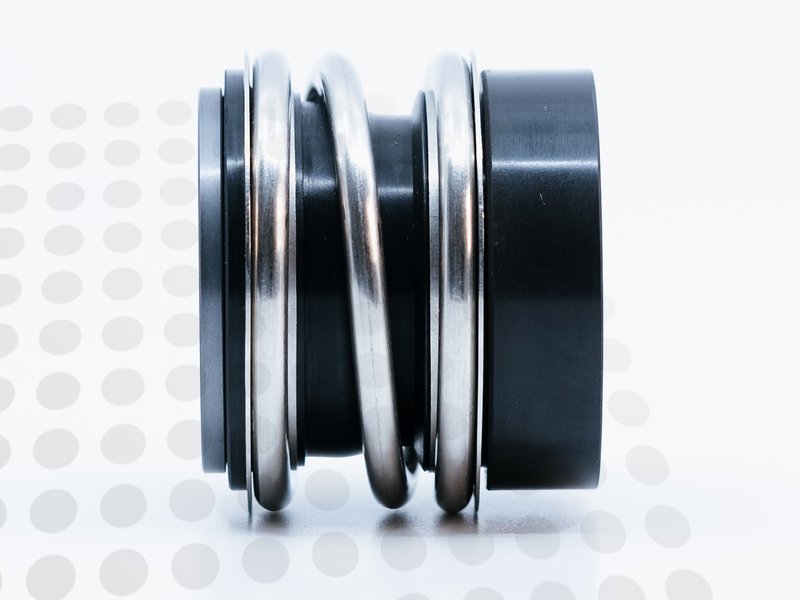

The Qseals 2R-QRB02-0150-S-N is part of the QRB02 group and is designed for 15 mm shaft applications. It features Silicon Carbide (SIC) rotary faces. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B012-D-XP-0150, AES N-B092U-D-XP-0150, Anga 15 A4 - QPGG, and Vulcan 0150.192B.N.S.SEAL.
| Brand | Qseals |
|---|---|
| Group | QRB02 |
| SKU | 2R-QRB02-0150-S-N |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

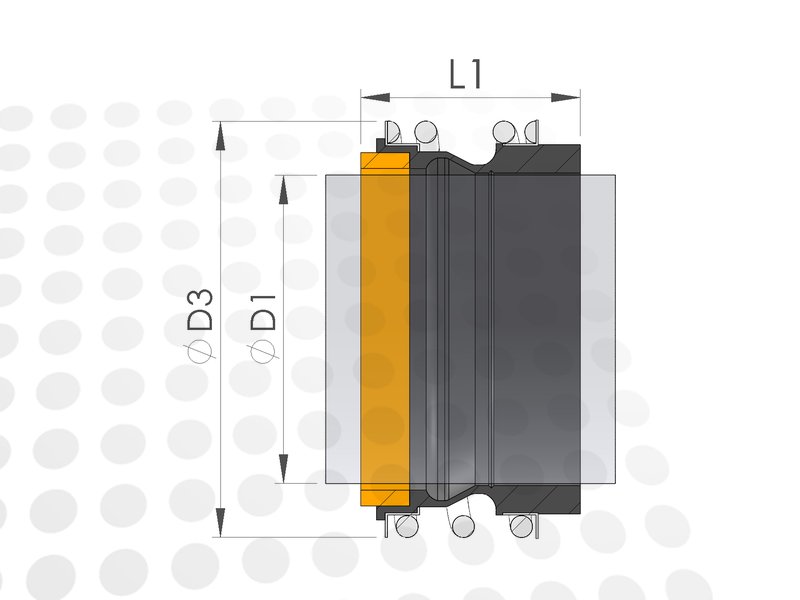

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 15 mm |
| Rotary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB02 product group.
Alternatives
The Qseals 2R-QRB02-0150-S-N is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B012-D-XP-0150 |
| AES | N-B092U-D-XP-0150 |
| Anga | 15 A4 - QPGG |
| Vulcan | 0150.192B.N.S.SEAL |
