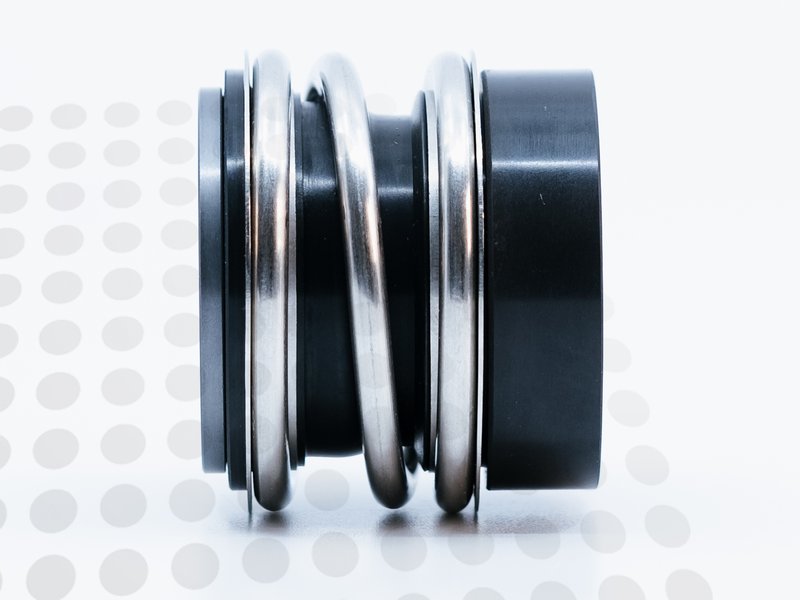

The Qseals 2R-QRB02-0300-S-V is part of the QRB02 group and is designed for 30 mm shaft applications. It features silicon carbide rotary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B012-D-ZP-0300, AES N-B092U-D-ZP-0300, Anga 30 A4 - QVGG, and Vulcan 0300.192B.V.S.SEAL.
| Brand | Qseals |
|---|---|
| Group | QRB02 |
| SKU | 2R-QRB02-0300-S-V |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 30 mm |
| Rotary face | Silicon Carbide |
| Elastomers | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2R-QRB02-0300-S-V is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B012-D-ZP-0300 |
| AES | N-B092U-D-ZP-0300 |
| Anga | 30 A4 - QVGG |
| Vulcan | 0300.192B.V.S.SEAL |
Applications
The Qseals 2R-QRB02-0300-S-V can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
