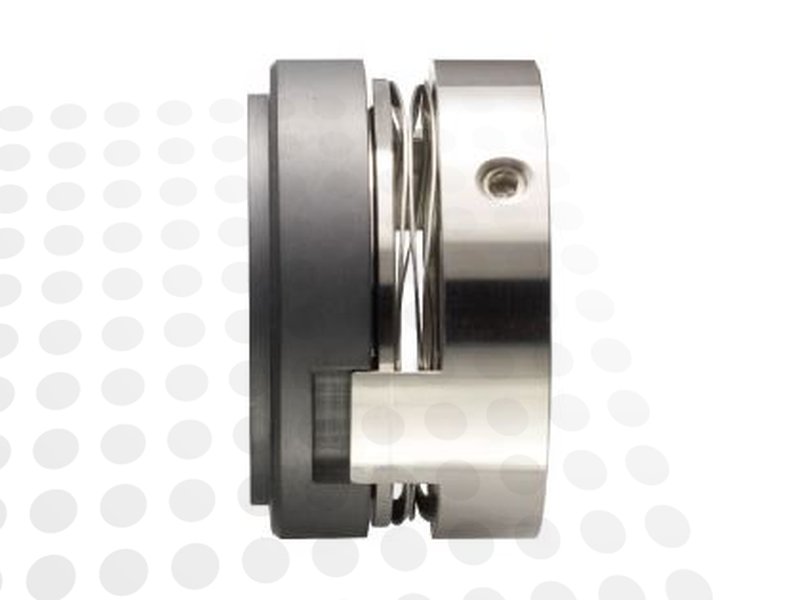

The Qseals 2R-QWS07-0600-Z-E is part of the QWS07 group and is designed for 60 mm shaft applications. It features Sintered Silicon Carbide (SSIC) rotary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-W07DMU-J-YP-0600 and Vulcan W-0600.1677M.E.R.SEA.
| Brand | Qseals |
|---|---|
| Group | QWS07 |
| SKU | 2R-QWS07-0600-Z-E |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|

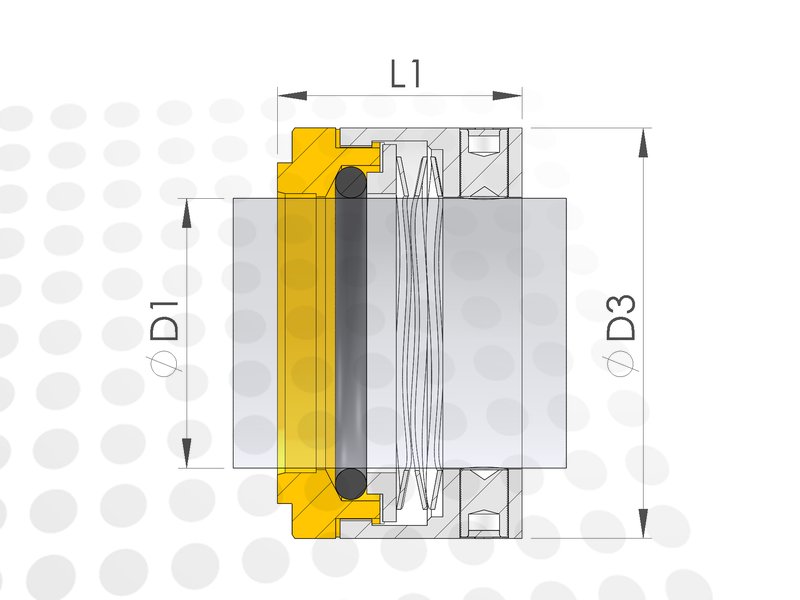

| Shaft size (D1) | 60 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 25 bar |
Other size or material combination?
Search within the Qseals QWS07 product group.
Alternatives
The Qseals 2R-QWS07-0600-Z-E is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-W07DMU-J-YP-0600 |
| Vulcan | W-0600.1677M.E.R.SEA |
