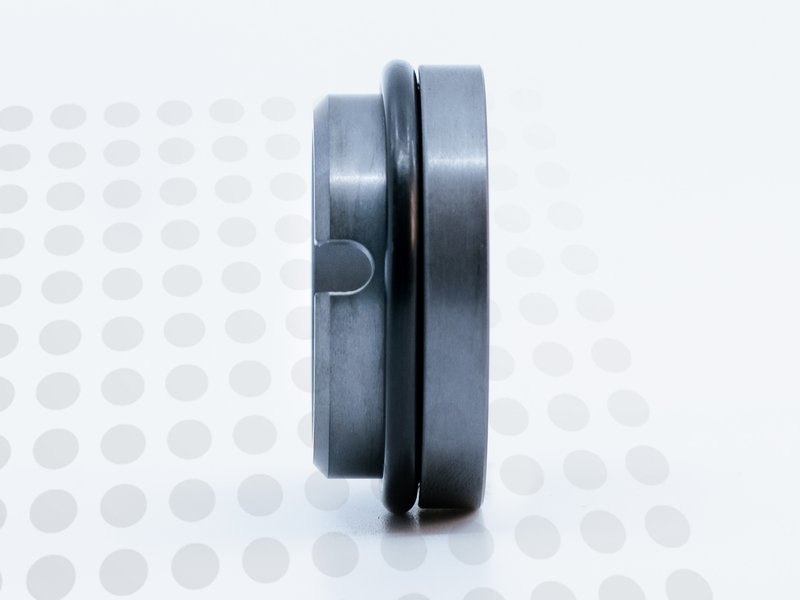

The Qseals 2S-ST09-0450--SV is part of the ST09 group and is designed for 45 mm shaft applications. It features Silicon Carbide (SIC) stationary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-S02U--DZQ-0450, Anga 45 A0 - QV, Anga 45 A1 - QV, and Vulcan 0450.8.DINL.V.S.DINL.
| Brand | Qseals |
|---|---|
| Group | ST09 |
| SKU | 2S-ST09-0450--SV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | STATIONARY |
|---|---|

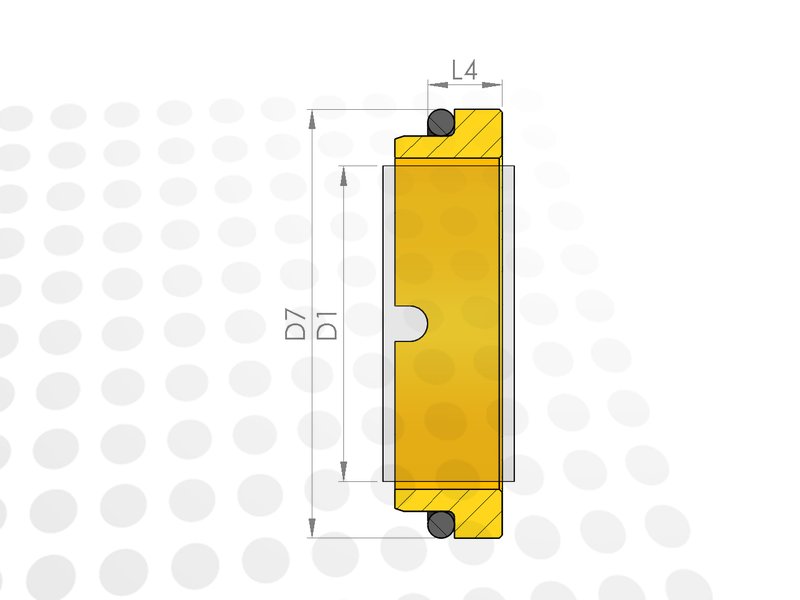

| Shaft size (D1) | 45 mm |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals ST09 product group.
Alternatives
The Qseals 2S-ST09-0450--SV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-S02U--DZQ-0450 |
| Anga | 45 A0 - QV |
| Anga | 45 A1 - QV |
| Vulcan | 0450.8.DINL.V.S.DINL |
