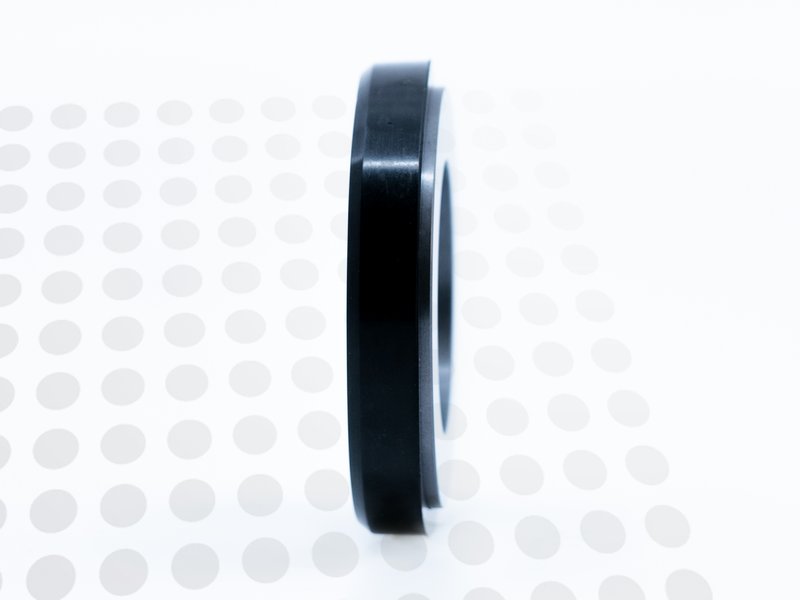

The Qseals 2S-ST60-0430--SE is part of the ST60 group and is designed for 43 mm shaft applications. It features Silicon Carbide (SIC) stationary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-S040U--DYQ-0430, Anga 43 E5 - QE, Burgmann G60/43 Q1E, and Vulcan 0430.19B.E.S.STAT.
| Brand | Qseals |
|---|---|
| Group | ST60 |
| SKU | 2S-ST60-0430--SE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | STATIONARY |
|---|---|

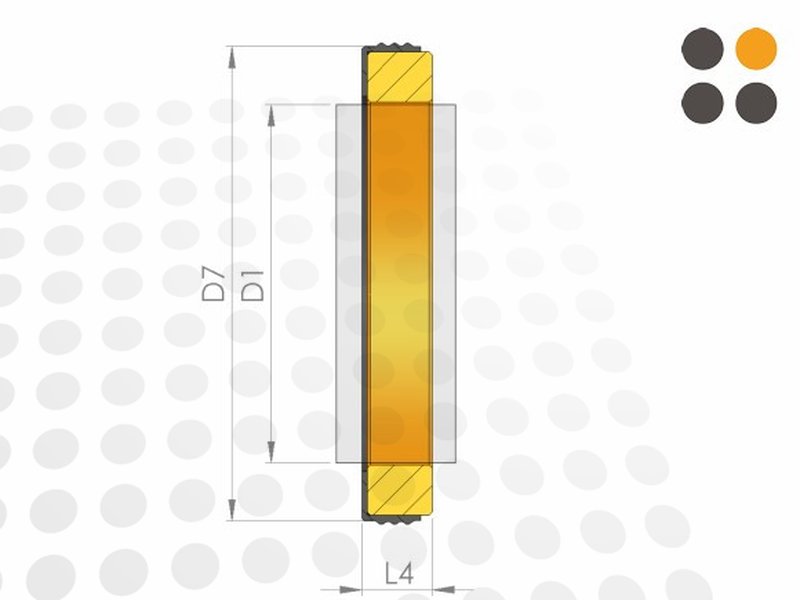

| Shaft size (D1) | 43 mm |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals ST60 product group.
Alternatives
The Qseals 2S-ST60-0430--SE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-S040U--DYQ-0430 |
| Anga | 43 E5 - QE |
| Burgmann | G60/43 Q1E |
| Vulcan | 0430.19B.E.S.STAT |
