The Qseals 2S-STBD-0350--SP is part of the STBD group and is designed for 35 mm shaft applications. It features silicon carbide stationary faces. This product uses PTFE (PTFE) elastomers. The maximum recommended operating temperature is 230°C. It is a compatible alternative to the AES N-S010U--DVQ-0350.
| Brand | Qseals |
|---|---|
| Group | STBD |
| SKU | 2S-STBD-0350--SP |
No commitment. Receive a price and technical data sheet within 24 hours.

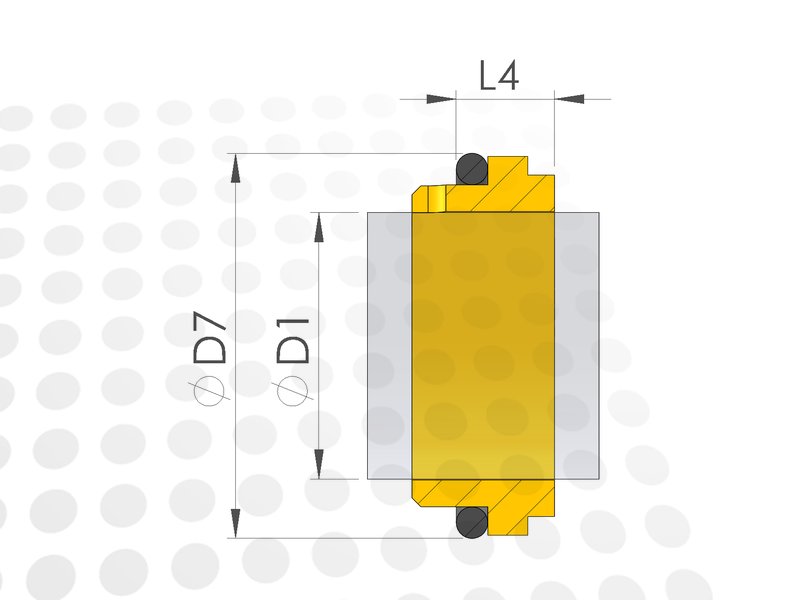

Technical specifications
| Category | STATIONARY |
|---|---|
| Shaft size | 35 mm |
| Stationary face | Silicon Carbide |
| Elastomers | PTFE |
| Stationary Housing Diameter | |
| Stationary Bore Depth | |
| Temperature Limit | 230 °C |
| Pressure Limit | 30 bar |
Alternatives
The Qseals 2S-STBD-0350--SP is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-S010U--DVQ-0350 |
