The Qseals 2S-STBD-0580--SP is part of the STBD group and is designed for 58 mm shaft applications. It features Silicon Carbide (SIC) stationary faces. This product uses PTFE (PTFE) elastomers. The maximum recommended operating temperature is 230°C. It is a compatible alternative to the AES N-S010U--DVQ-0580.
| Brand | Qseals |
|---|---|
| Group | STBD |
| SKU | 2S-STBD-0580--SP |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

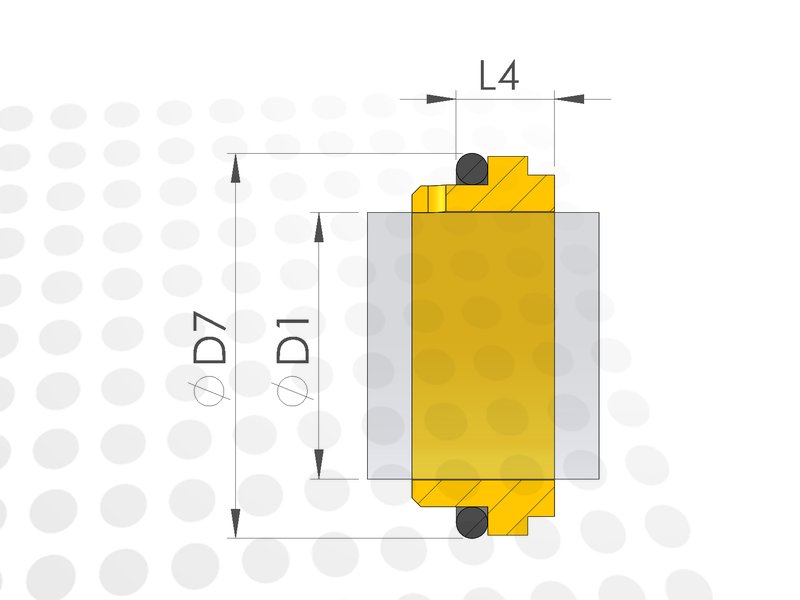

Technical specifications
| Category | STATIONARY |
|---|---|
| Shaft size (D1) | 58 mm |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | PTFE (PTFE) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 230 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals STBD product group.
Alternatives
The Qseals 2S-STBD-0580--SP is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-S010U--DVQ-0580 |
