The Vulcan 0200.1680.V.P. is part of the 1680 group and is designed for 20 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 1C-QALSRUSTS-0200-XCV.
| Brand | Vulcan |
|---|---|
| Group | 1680 |
| SKU | 0200.1680.V.P. |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

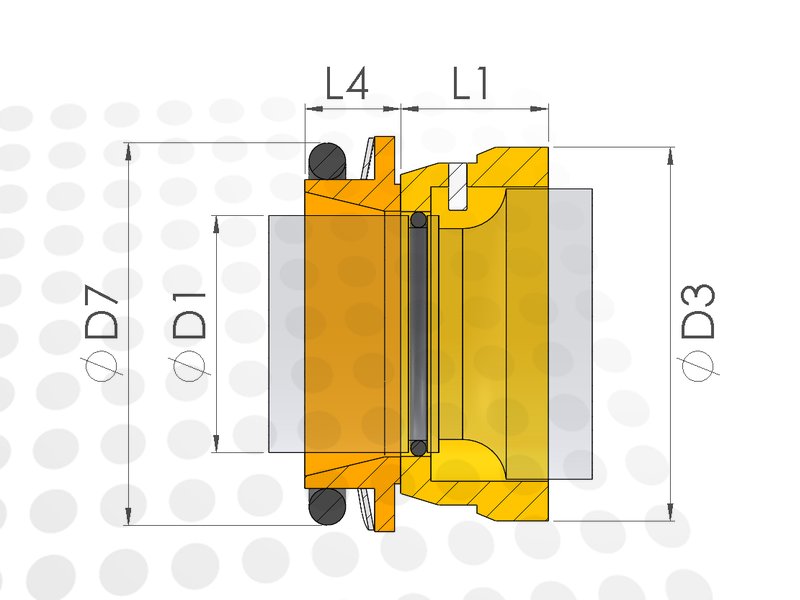

| Shaft size (D1) | 20 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Vulcan 1680 product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan 0200.1680.V.P., with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QALSRUSTS-0200-XCV |
