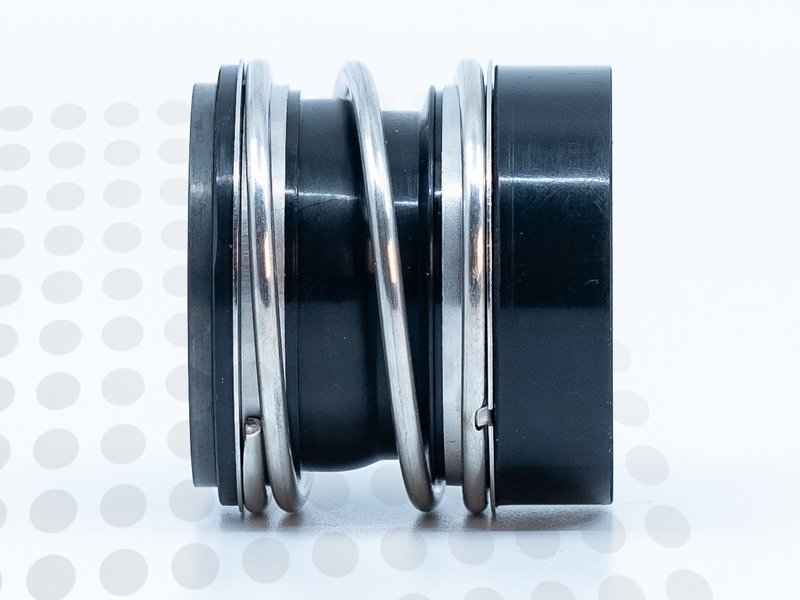

The Vulcan 0220.142DIN.V.C.SEAL is part of the 142DIN group and is designed for 22 mm shaft applications. It features carbon rotary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2R-QRB07-0220-C-V.
| Brand | Vulcan |
|---|---|
| Group | 142DIN |
| SKU | 0220.142DIN.V.C.SEAL |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 22 mm |
| Rotary face | Carbon |
| Elastomers | Viton |

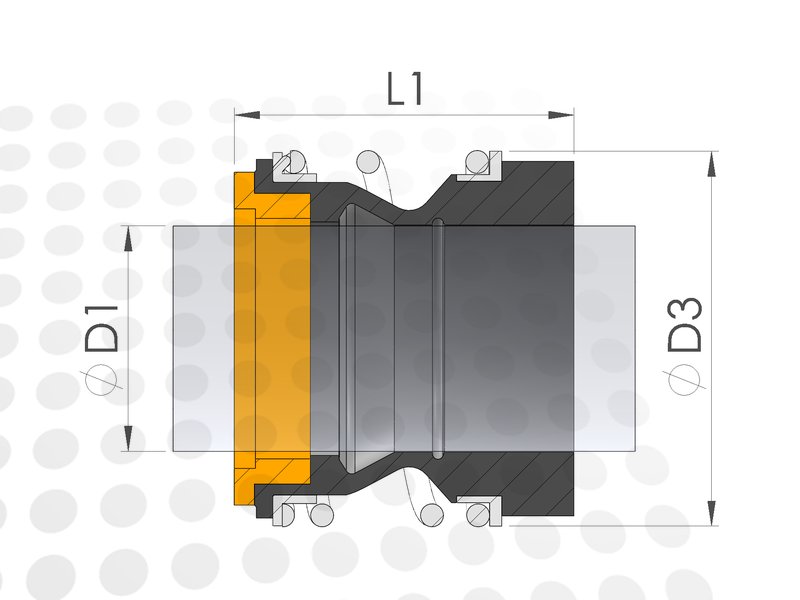

| Rotary Outer Diameter | |
| Rotary Working Length | |
| Temperature Limit | 205 °C |
Alternatives
These products are direct 1-to-1 replacements for the Vulcan 0220.142DIN.V.C.SEAL, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2R-QRB07-0220-C-V |
