The Vulcan 0254.26.E.S.SEAL is part of the 26 group and is designed for 25.4 mm shaft applications. It features Sintered Silicon Carbide (SSIC) rotary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1R-QPS06-0254-Z-E.
| Brand | Vulcan |
|---|---|
| Group | 26 |
| SKU | 0254.26.E.S.SEAL |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

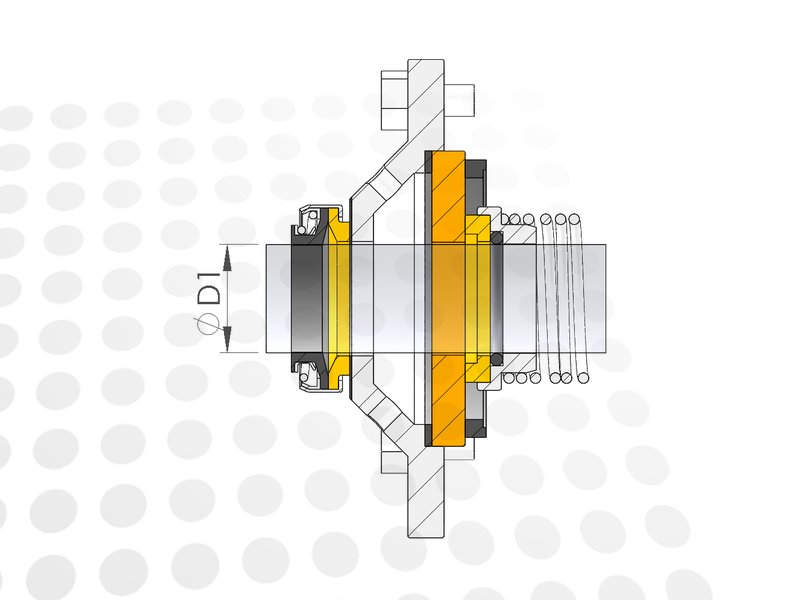

| Shaft size (D1) | 25.4 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Vulcan 26 product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan 0254.26.E.S.SEAL, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1R-QPS06-0254-Z-E |
