The Vulcan 0350.1680.E.S. is part of the 1680 group and is designed for 35 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1C-QALSRUSTS-0350-ZZE.
| Brand | Vulcan |
|---|---|
| Group | 1680 |
| SKU | 0350.1680.E.S. |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

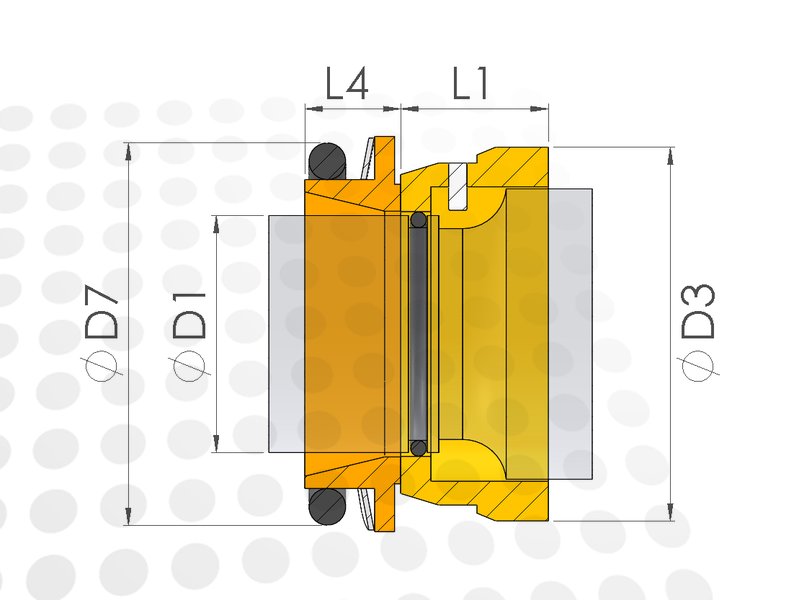

| Shaft size (D1) | 35 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Vulcan 1680 product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan 0350.1680.E.S., with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QALSRUSTS-0350-ZZE |
