The Vulcan 0350.8.R.N.D. is part of the 8 group and is designed for 35 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QCS01ST04-0350-CSN-R.
| Brand | Vulcan |
|---|---|
| Group | 8 |
| SKU | 0350.8.R.N.D. |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 35 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Spring direction | Right |

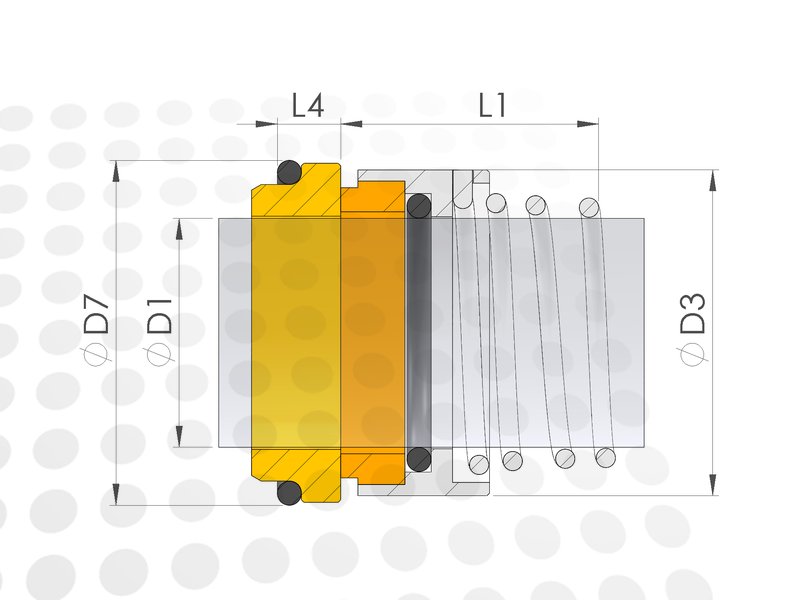

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Vulcan 8 product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan 0350.8.R.N.D., with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QCS01ST04-0350-CSN-R |
