The Vulcan 1200.97.L.E.T. is part of the 97 group and is designed for 120 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QPS08STSQCL3-1200-SCE-L.
Technical specifications

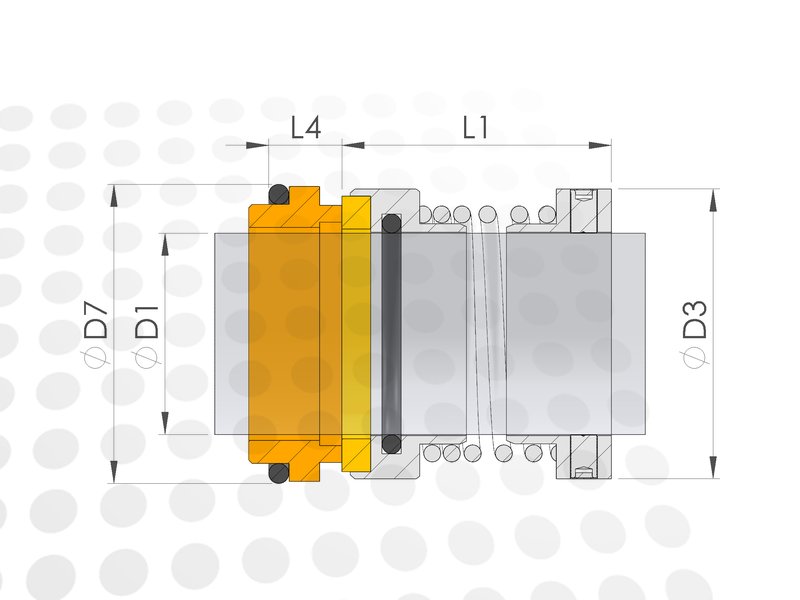

| Category | PARALLEL SPRING |
|---|---|
| Shaft size (D1) | 120 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Spring direction | L |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 140 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Vulcan 97 product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan 1200.97.L.E.T., with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QPS08STSQCL3-1200-SCE-L |
