The Vulcan W-0400.1678.N.DR. is part of the 1678 group and is designed for 40 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QWS07BST09-0400-CZN.
| Brand | Vulcan |
|---|---|
| Group | 1678 |
| SKU | W-0400.1678.N.DR. |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size (D1) | 40 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | NBR (NITRILE) |

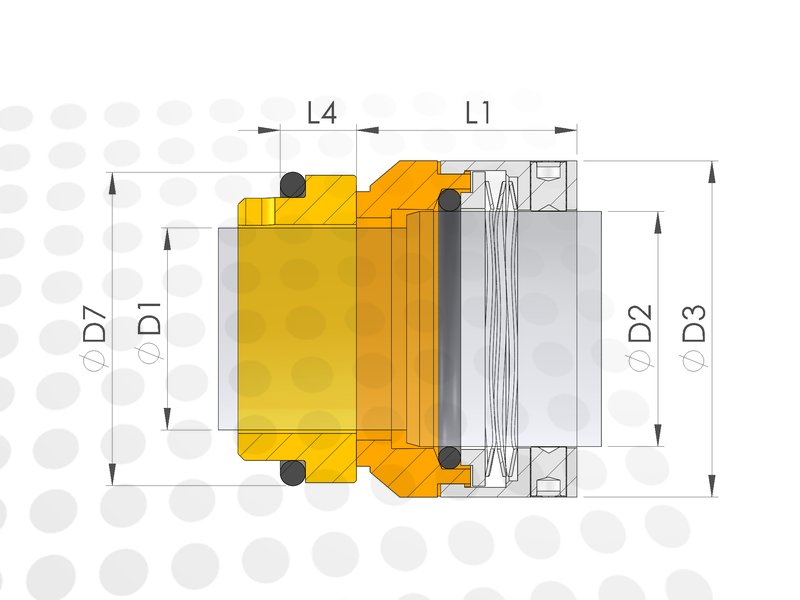

| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 45 bar |
Other size or material combination?
Search within the Vulcan 1678 product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan W-0400.1678.N.DR., with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QWS07BST09-0400-CZN |
