The Vulcan W-0650.1659BS.V.IB.SEA is part of the 1659BS group and is designed for 65 mm shaft applications. It features Carbon (CAR) rotary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2R-QMS11-0650-C-V.
| Brand | Vulcan |
|---|---|
| Group | 1659BS |
| SKU | W-0650.1659BS.V.IB.SEA |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

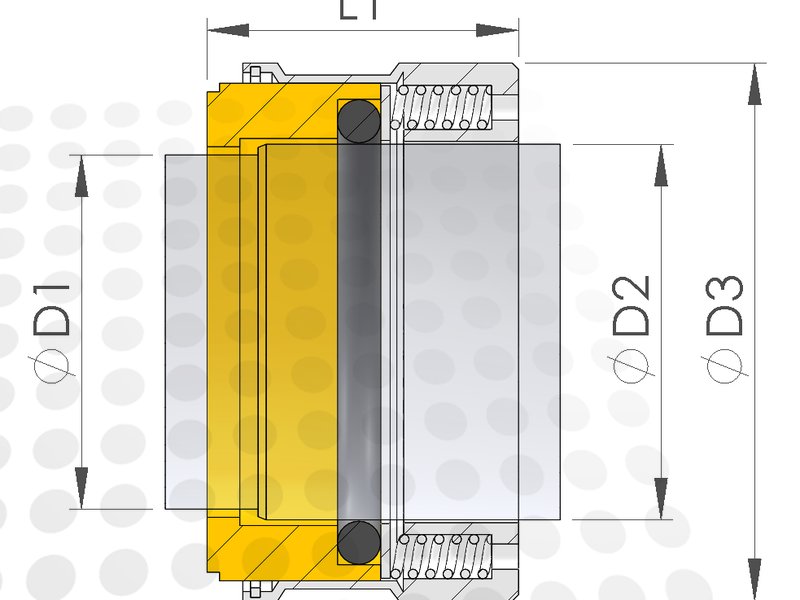

Technical specifications
| Category | MULTI SPRING |
|---|---|
| Shaft size (D1) | 65 mm |
| Rotary face | Carbon (CAR) |
| Elastomers | Viton (FKM VIT) |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 50 bar |
Other size or material combination?
Search within the Vulcan 1659BS product group.
Alternatives
These products are direct 1-to-1 replacements for the Vulcan W-0650.1659BS.V.IB.SEA, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2R-QMS11-0650-C-V |
