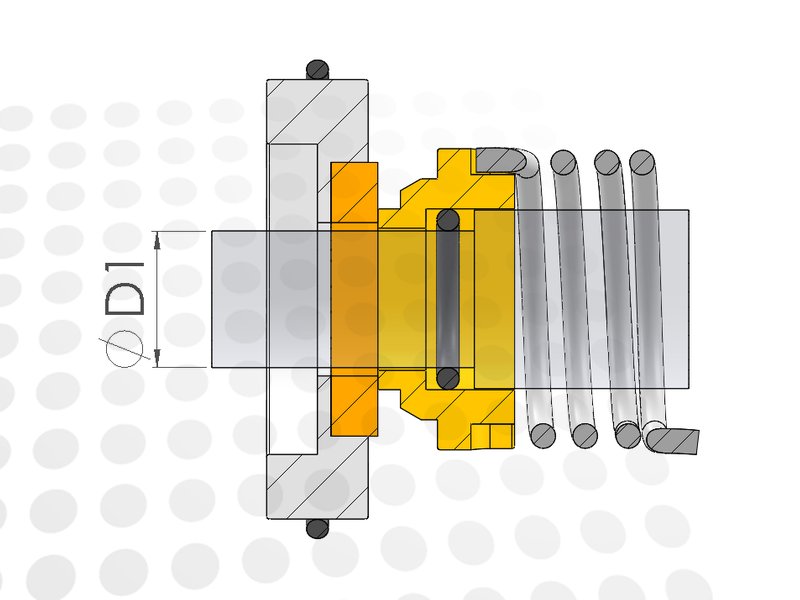

The AES F-T0WS-AJY1-0250 is part of the T0WS group and is designed for 25 mm shaft applications. It features a carbon rotary face paired with a sintered silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1C-QAPV07STS-0250-CZE.
| Brand | AES |
|---|---|
| Group | T0WS |
| SKU | F-T0WS-AJY1-0250 |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 25 mm |
| Rotary face | Carbon |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | EPDM |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Alternatives
These products are direct 1-to-1 replacements for the AES F-T0WS-AJY1-0250, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QAPV07STS-0250-CZE |
