The AES F-W13SU-JJYJAY1-0762 is part of the W13SU group and is designed for 76.2 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1C-QWS14-0762-ZCE-ZCE.
| Brand | AES |
|---|---|
| Group | W13SU |
| SKU | F-W13SU-JJYJAY1-0762 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

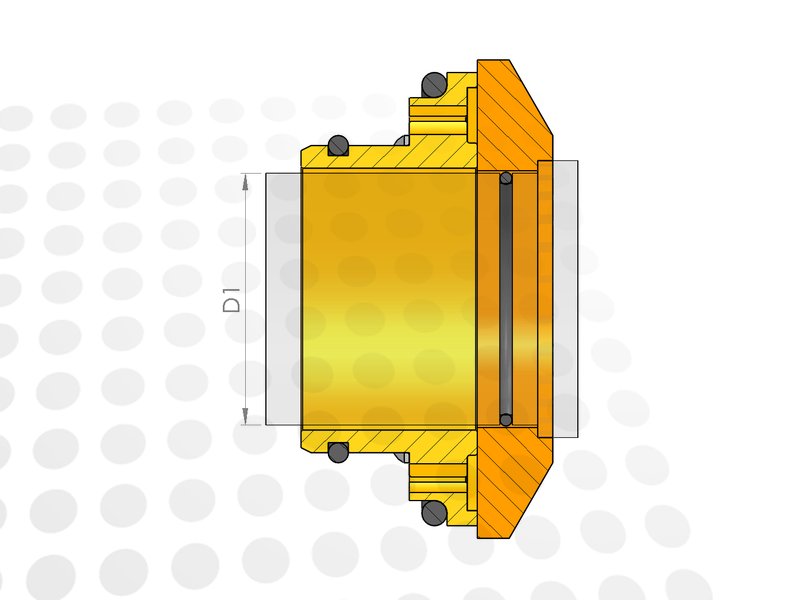

| Shaft size (D1) | 76.2 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Outer rotary face | Sintered Silicon Carbide (SSIC) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | EPDM |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the AES W13SU product group.
Alternatives
These products are direct 1-to-1 replacements for the AES F-W13SU-JJYJAY1-0762, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QWS14-0762-ZCE-ZCE |
