The AES F-W13U-BAY1-0476 is part of the W13U group and is designed for 47.6 mm shaft applications. It features a Ceramic (CER) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1C-QWS13STS-0476-UCE.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

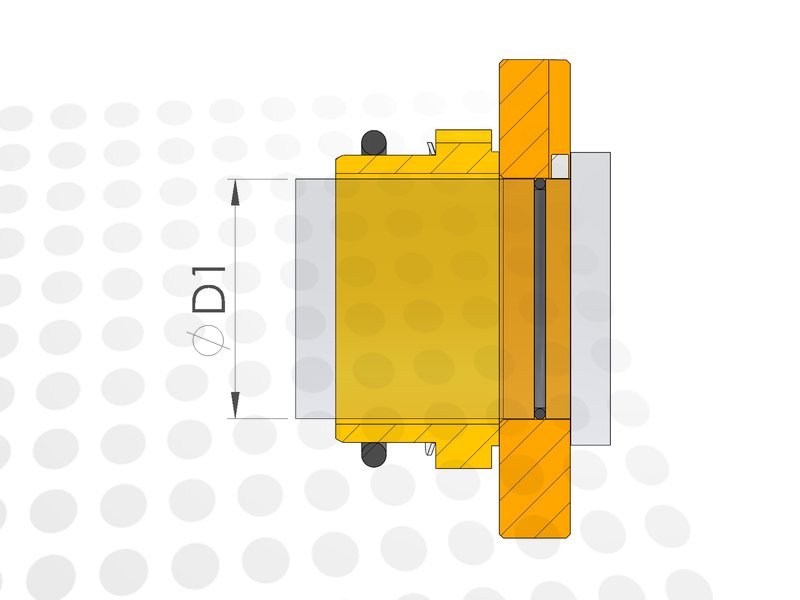

| Shaft size (D1) | 47.6 mm |
| Rotary face | Ceramic (CER) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Temperature limit | 140 °C |
| Pressure limit | 16 bar |
Other size or material combination?
Search within the AES W13U product group.
Alternatives
These products are direct 1-to-1 replacements for the AES F-W13U-BAY1-0476, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QWS13STS-0476-UCE |
