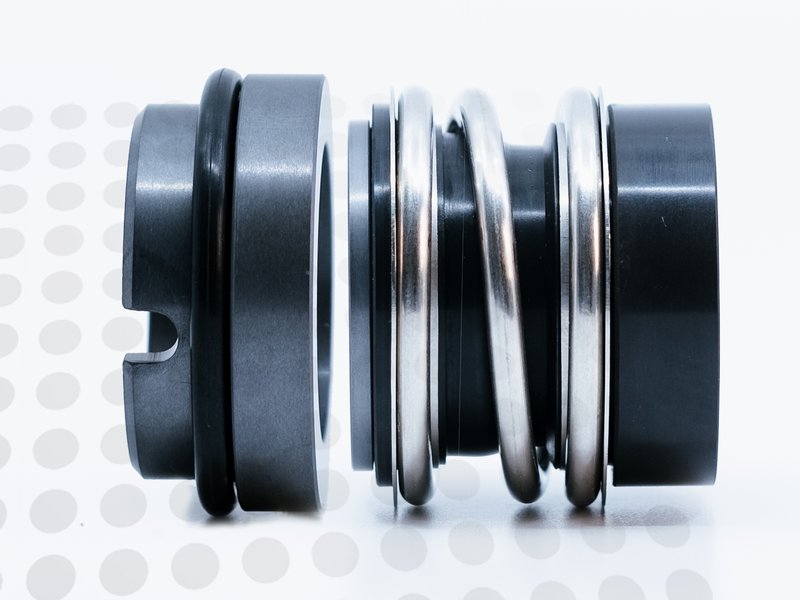

The AES N-B092SLU-DDY1-0700 is part of the B092SLU group and is designed for 70 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QRB07ST09-0700-SSE.
| Brand | AES |
|---|---|
| Group | B092SLU |
| SKU | N-B092SLU-DDY1-0700 |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 70 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | EPDM |

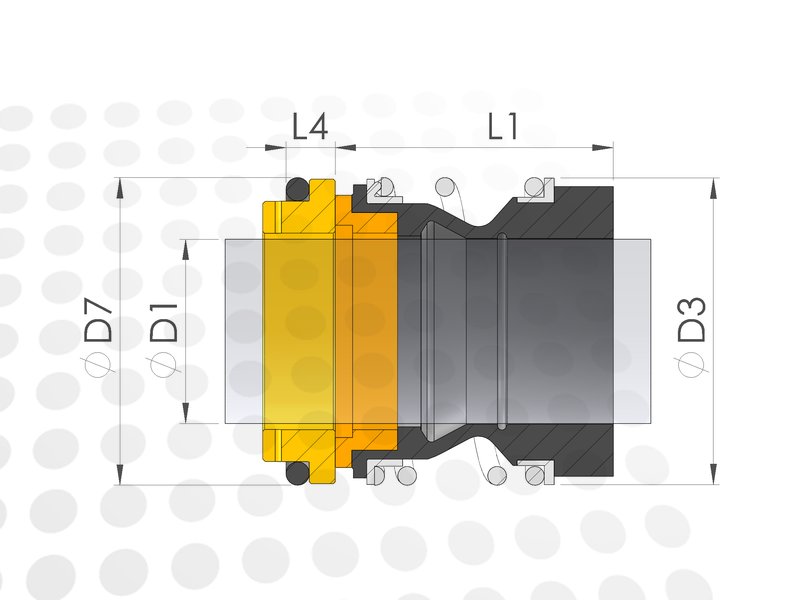

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Alternatives
These products are direct 1-to-1 replacements for the AES N-B092SLU-DDY1-0700, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB07ST09-0700-SSE |
