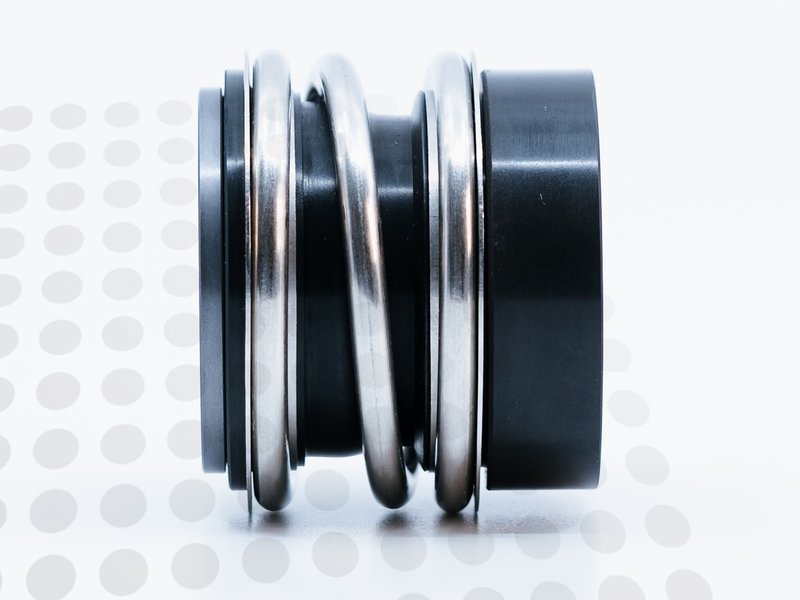

The AES N-B092U-D-ZP-0280 is part of the B092U group and is designed for 28 mm shaft applications. It features Silicon Carbide (SIC) rotary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2R-QRB02-0280-S-V.
| Brand | AES |
|---|---|
| Group | B092U |
| SKU | N-B092U-D-ZP-0280 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

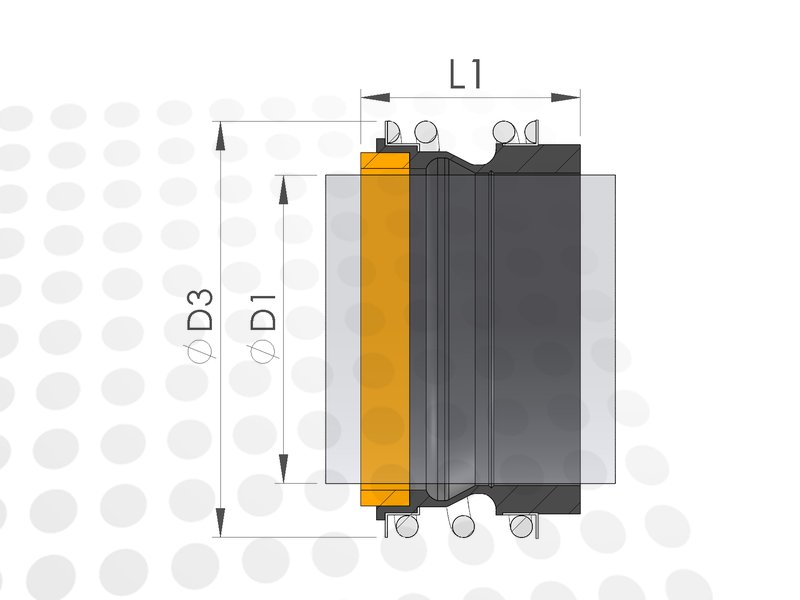

| Shaft size (D1) | 28 mm |
| Rotary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the AES B092U product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-B092U-D-ZP-0280, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2R-QRB02-0280-S-V |
