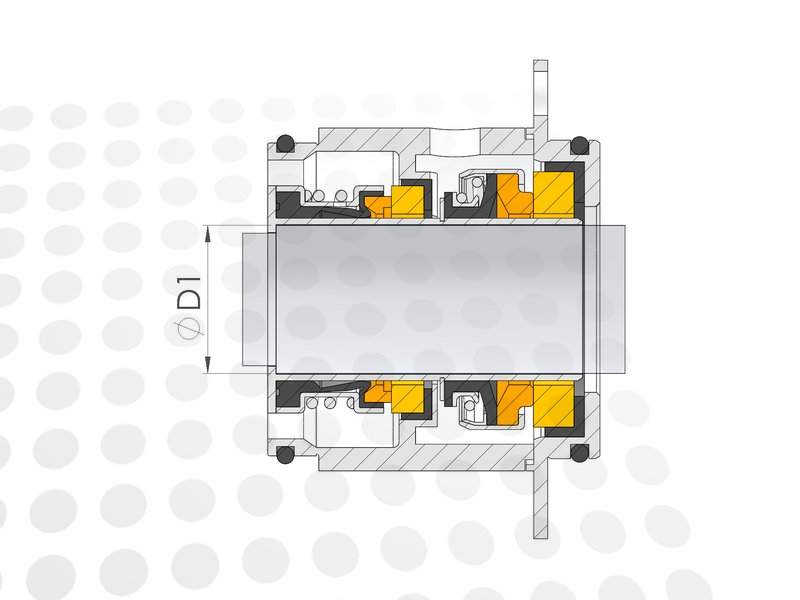

The AES N-B09GU-DDZABX1-0320 is part of the B09GU group and is designed for 32 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QRB01G-0320-SSV-CUN.
| Brand | AES |
|---|---|
| Group | B09GU |
| SKU | N-B09GU-DDZABX1-0320 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 32 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Ceramic (CER) |
| Outer elastomer | NBR |
| Temperature Limit | 205 °C |
Other size or material combination?
Search within the AES B09GU product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-B09GU-DDZABX1-0320, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB01G-0320-SSV-CUN |
