The AES N-B09XSU-ABY1-0600 is part of the B09XSU group and is designed for 60 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QRB24STS-0600-CUE.
| Brand | AES |
|---|---|
| Group | B09XSU |
| SKU | N-B09XSU-ABY1-0600 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

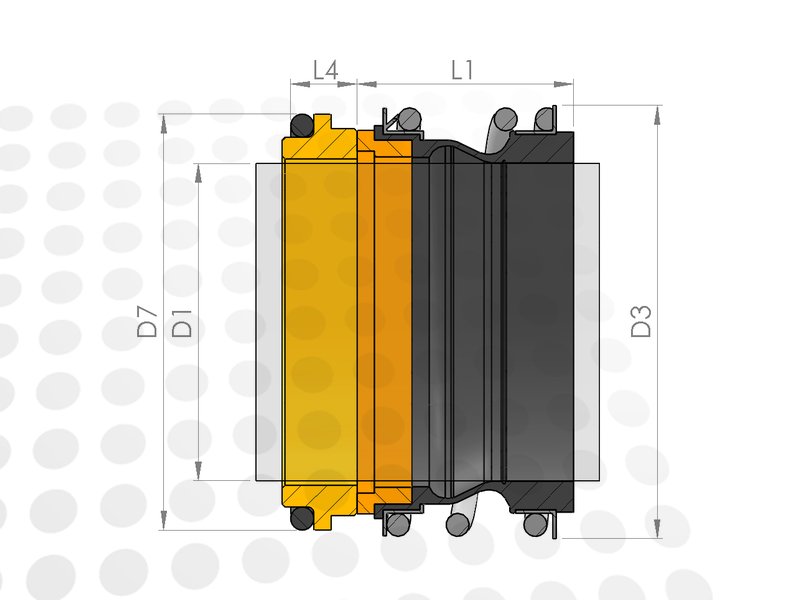

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 60 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
Other size or material combination?
Search within the AES B09XSU product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-B09XSU-ABY1-0600, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB24STS-0600-CUE |
