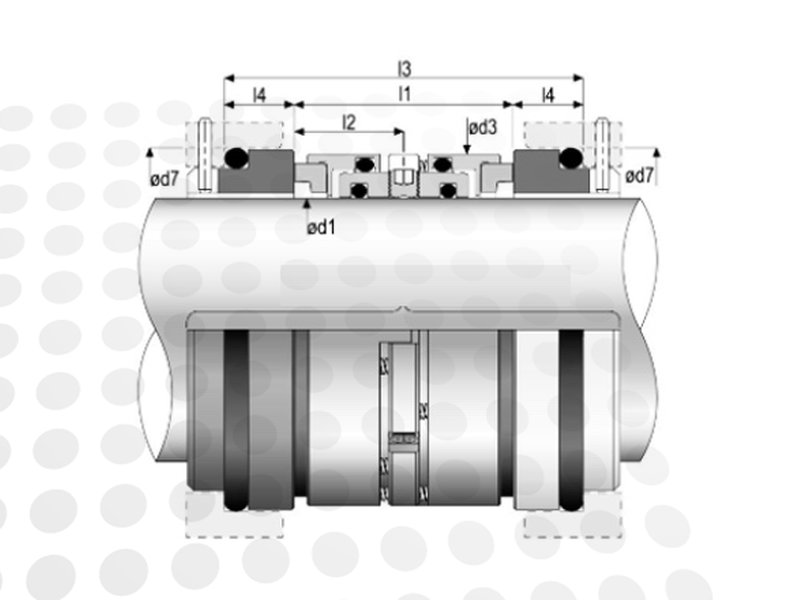

The AES N-M010D-ADYADY1-0630 is part of the M010D group and is designed for 63 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QMS02D-0630-CSE-CSE.
| Brand | AES |
|---|---|
| Group | M010D |
| SKU | N-M010D-ADYADY1-0630 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | MULTI SPRING |
|---|---|
| Shaft size (D1) | 63 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Silicon Carbide (SIC) |
| Outer elastomer | EPDM |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 24 bar |
Other size or material combination?
Search within the AES M010D product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-M010D-ADYADY1-0630, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QMS02D-0630-CSE-CSE |
