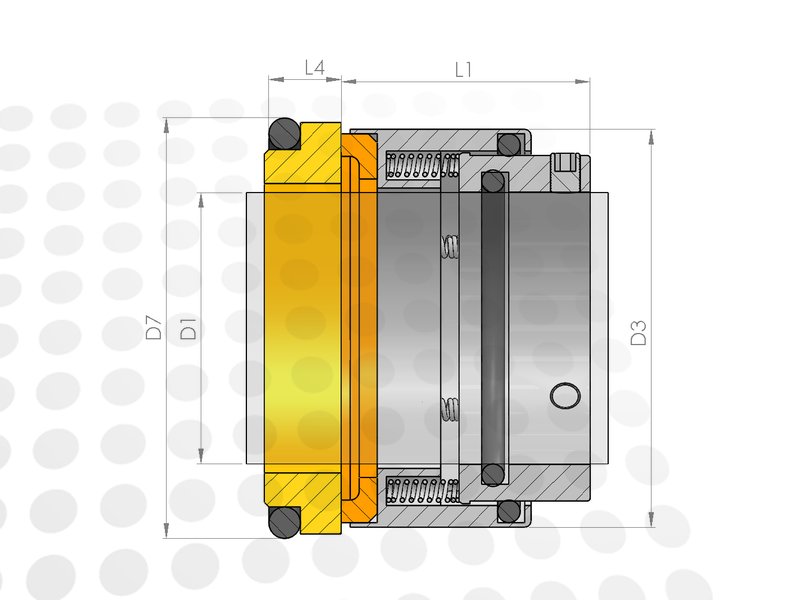

The AES N-M010H-GDX1-0508 is part of the M010H group and is designed for 50.8 mm shaft applications. It features a tungsten carbide rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 1C-QMS26STS-0508-TSN.
| Brand | AES |
|---|---|
| Group | M010H |
| SKU | N-M010H-GDX1-0508 |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 50.8 mm |
| Rotary face | Tungsten Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |
| Temperature Limit | 120 °C |
| Pressure Limit | 25 bar |
Alternatives
These products are direct 1-to-1 replacements for the AES N-M010H-GDX1-0508, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QMS26STS-0508-TSN |
