The AES N-SSAIS06-ADZ1-0500 is part of the SSAIS06 group and is designed for 50 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QMS01ST07-0500-CSV.
| Brand | AES |
|---|---|
| Group | SSAIS06 |
| SKU | N-SSAIS06-ADZ1-0500 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | MULTI SPRING |
|---|---|
| Shaft size (D1) | 50 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |

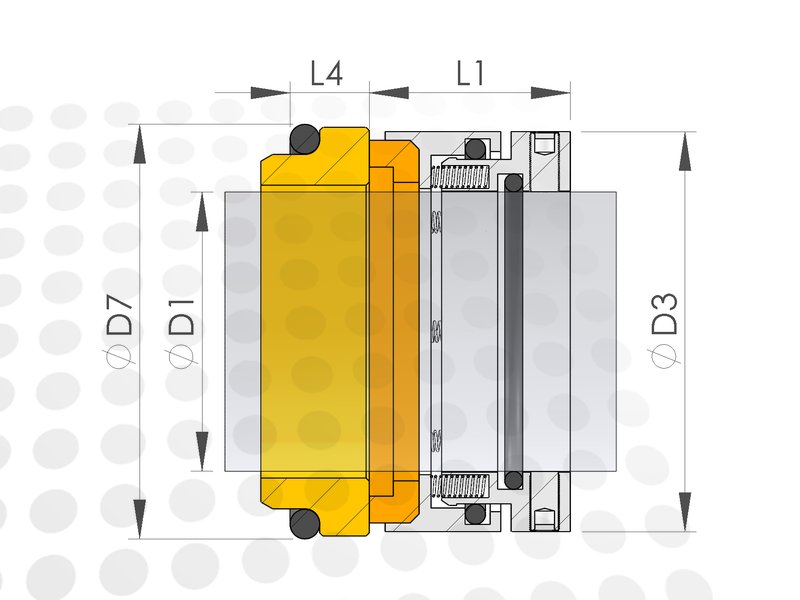

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Other size or material combination?
Search within the AES SSAIS06 product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-SSAIS06-ADZ1-0500, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QMS01ST07-0500-CSV |
