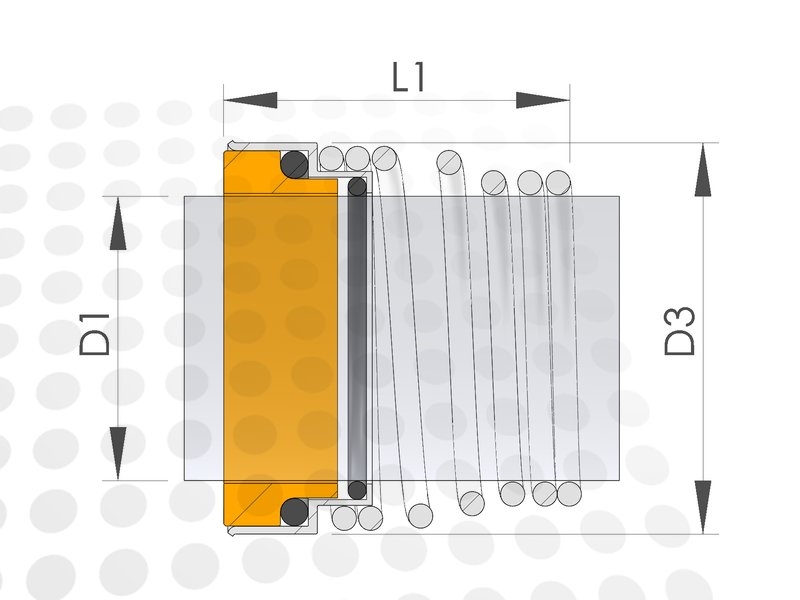

The AES N-T04D-B-XR-0190 is part of the T04D group and is designed for 19 mm shaft applications. It features ceramic rotary faces. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2R-QCS11-0190-U-N-R.
| Brand | AES |
|---|---|
| Group | T04D |
| SKU | N-T04D-B-XR-0190 |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size | 19 mm |
| Rotary face | Ceramic |
| Elastomers | NBR |
| Spring direction | Right |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
These products are direct 1-to-1 replacements for the AES N-T04D-B-XR-0190, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2R-QCS11-0190-U-N-R |
