The AES N-M02SU-ADN2-0254 is part of the M02SU group and is designed for 25.4 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Neoprene (NEO) elastomers. It is a compatible alternative to the Qseals 2C-QMS07STWA-0254-CSR.
Technical specifications
| Category | MULTI SPRING |
|---|---|

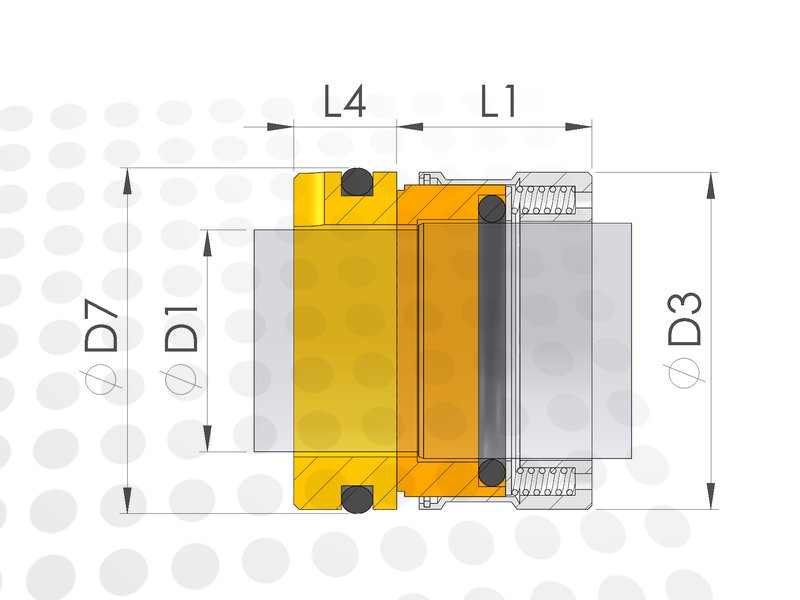

| Shaft size (D1) | 25.4 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Neoprene (NEO) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Pressure limit | 30 bar |
Other size or material combination?
Search within the AES M02SU product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-M02SU-ADN2-0254, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QMS07STWA-0254-CSR |
