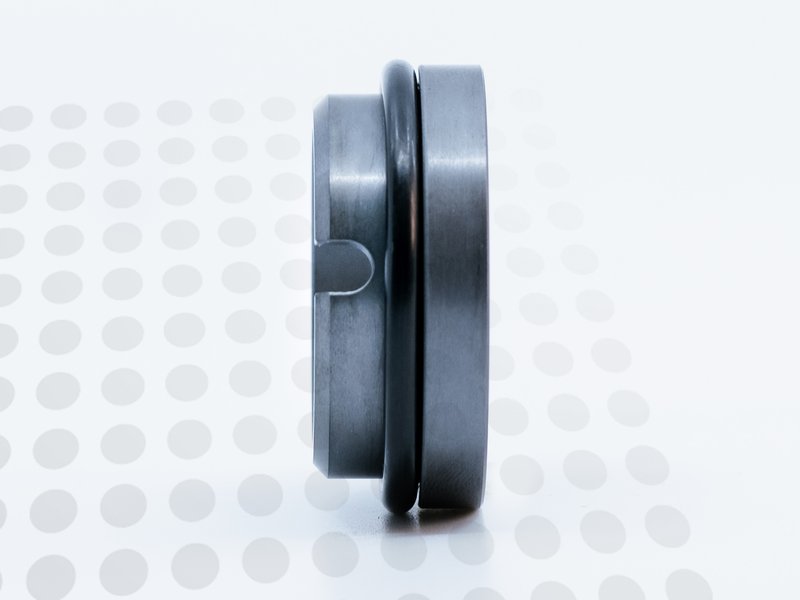

The AES N-S02U--BZQ-0150 is part of the S02U group and is designed for 15 mm shaft applications. It features ceramic stationary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2S-ST09-0150--UV.
| Brand | AES |
|---|---|
| Group | S02U |
| SKU | N-S02U--BZQ-0150 |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | STATIONARY |
|---|---|
| Shaft size | 15 mm |
| Stationary face | Ceramic |
| Elastomers | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 30 bar |
Alternatives
These products are direct 1-to-1 replacements for the AES N-S02U--BZQ-0150, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2S-ST09-0150--UV |
