The AES N-S0SSU-DDZDAZS-0160 is part of the S0SSU group and is designed for 16 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 1C-QSARLS16-0160-SSV-SCV.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

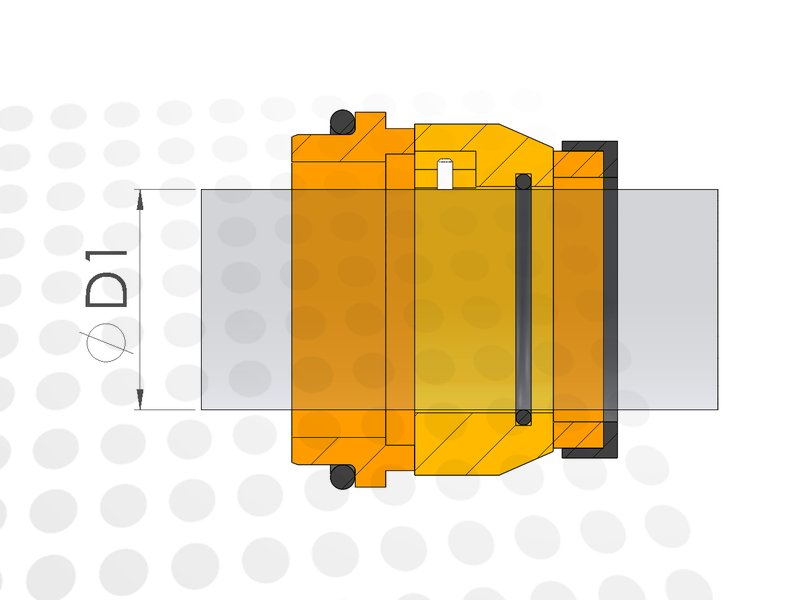

| Shaft size (D1) | 16 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Silicon Carbide (SIC) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | Viton (FKM) |
| Temperature limit | 205 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the AES S0SSU product group.
Alternatives
These products are direct 1-to-1 replacements for the AES N-S0SSU-DDZDAZS-0160, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QSARLS16-0160-SSV-SCV |
